1700 ℃ high vacuum graphite vacuum furnace

Model：KJ-VS1700-12CWG

Description：

Product Introduction: The KJ-VS1700-12CWG high-temperature graphite vacuum furnace uses graphite heating elements that are resistant to high temperatures and not easily deformed. The working temperature can reach 1700 ℃. The high-temperature vacuum

Product Introduction:

The KJ-VS1700-12CWG high-temperature graphite vacuum furnace uses graphite heating elements that are resistant to high temperatures and not easily deformed. The working temperature can reach 1700 ℃. The high-temperature vacuum furnace is equipped with a vacuum unit, which can achieve heat treatment of materials under high temperature and high vacuum. It is widely used for heat treatment of metal materials in high vacuum and protective atmosphere, and can also be used for heat treatment of special materials with good insulation properties such as carbide fibers. Click to view more vacuum furnaces!

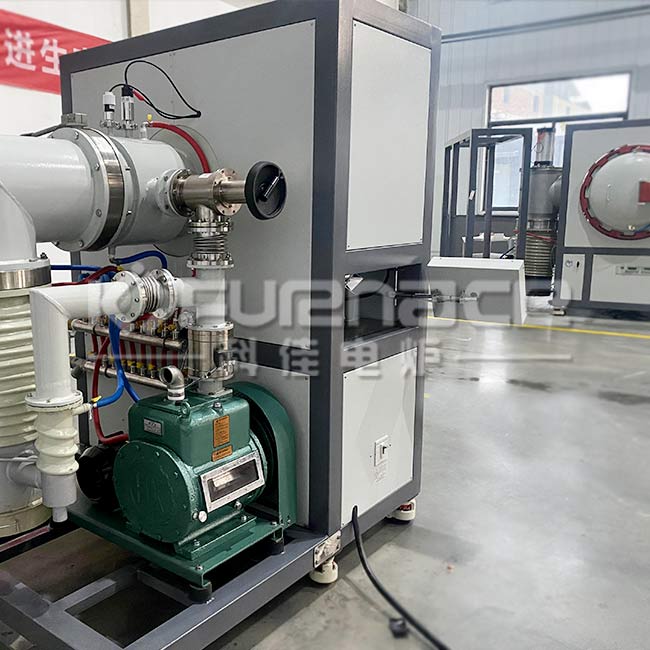

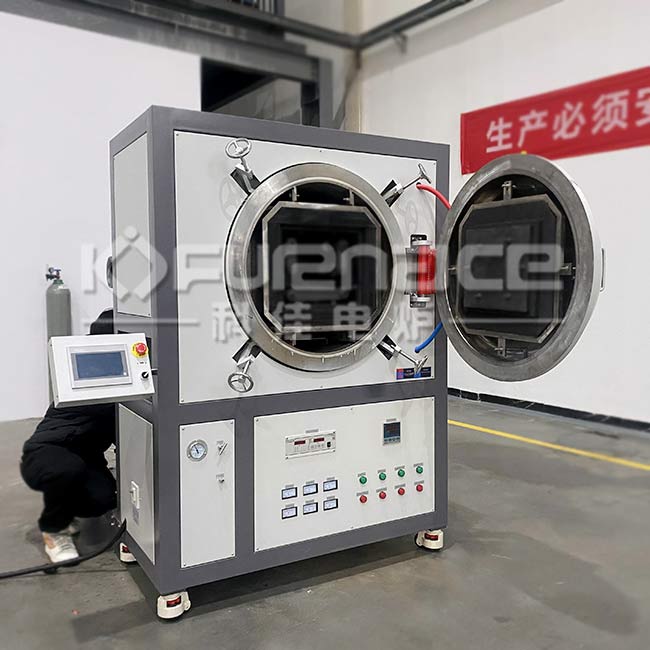

Actual photo of 1700 ℃ graphite vacuum furnace

The main technical features:

1. Working temperature up to 1700 degrees: Using high temperature resistant and non deformable graphite heating elements, the working temperature can reach 1700 degrees Celsius.
2. Over temperature protection and alarm: It has over temperature protection and alarm, as well as overheat and thermocouple fracture protection functions.
3. Temperature control accuracy can reach ± 1 ℃: The temperature control system adopts PID regulation and 16 segment programmable controller, and the temperature control accuracy can reach ± 1 ℃.

The main technical parameters:

Furnace model	KJ-VS1700-12CWG
Structure	Outside shell: 1, Carbon steel 2, Double-layer with water running in to keep low temperature. Insulation layer: Graphite felt.
Chamber dimension	200x200x300 mm (Can be customized according to customer needs)
Thermocouple	B-type thermocouple
Heating element	Graphite board.
Working temp.	1700 ℃
Heating rate	0-20℃/min (Suggestion: 0-10℃/min)
Temp. accuracy	±1℃
Temp. control	Screen control (16 temperature curves can be stored.) 16-segment Programmable controller PID automatic controller Broken thermocouple protection and automatic over heating protection alarm
Vacuum pump system	Ultimate degree 7×10(-3)pa
Cooling system	Industry chiller for outside shell and vacuum pumps Industry chiller is optional at extra costs and you can just use a water pump and a pool.
Warranty period	1 year(Excluding vulnerable parts)

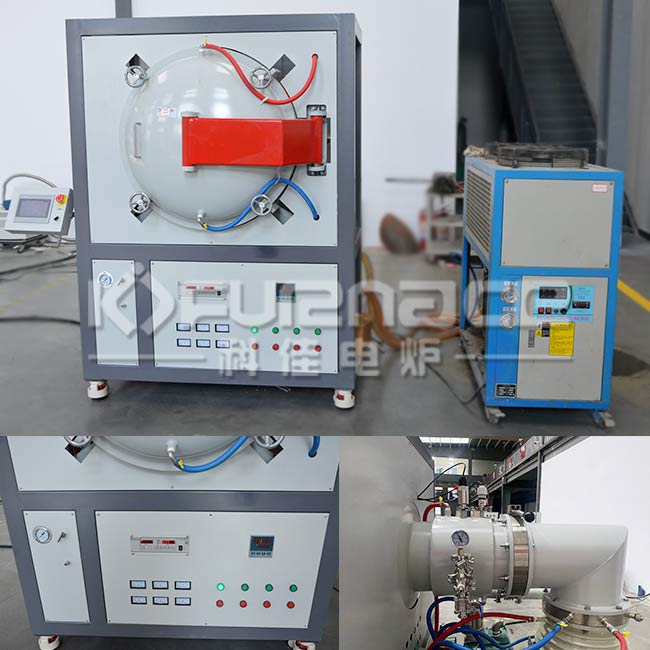

Actual photo of 1700 ℃ graphite vacuum furnace
