A brief description:

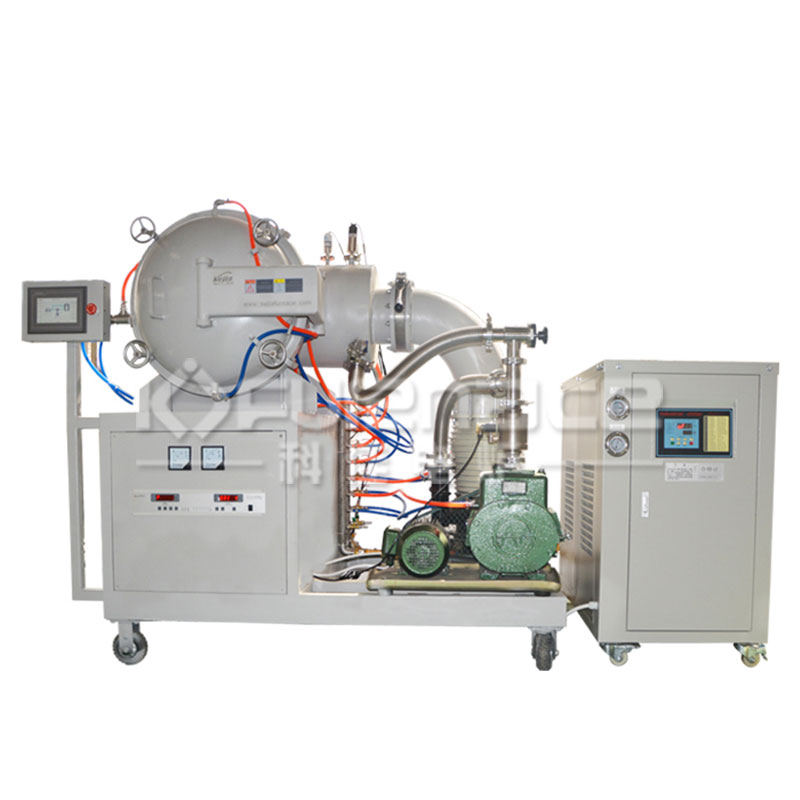

Application range of aluminum alloy vacuum brazing furnace: vacuum brazing of non-ferrous metals, stainless steel, titanium alloy, high temperature alloy, cemented carbide, etc. ...
Application range:
vacuum brazing of non-ferrous metals, stainless steel, titanium alloys, high temperature alloys, hard alloys, etc.
Product features:
1. Achieve high vacuum to ensure the quality of workpiece processing
2. Heating elements are evenly arranged to ensure the uniformity of the furnace temperature
3. Metal molybdenum heating, stainless steel insulation, high furnace cleanliness
4. The touch screen interface is friendly and practical, and can display and Monitoring the operating status of the equipment, can call, edit and store the sintering process, and have dynamic display, historical data can be recorded and exported
5. Safety interlock, fault diagnosis and abnormal alarm function
technical parameters:
|
model |
KJ-JS223 (optional) |
KJ-JS334 (optional) |
KJ-JS446 (optional) |
KJ-JS557 |
KJ-JS669 (optional) |
|
Heating area (mm) |
200×200×300 |
300×300×400 |
400×400×600 |
500×500×700 |
600×600×900 |
|
Heating power (Kw) |
25 |
50 |
75 |
95 |
150 |
|
Maximum temperature (℃) |
1350 |
1350 |
1350 |
1350 |
1350 |
|
Ultimate vacuum (Pa) |
10pa, 6.7×10-3pa |
||||
|
Heating element |
Metal molybdenum belt |
||||
|
structure |
Single indoor thermal horizontal structure |
||||
|
Heating rate |
0-20℃/min |
||||
|
More specifications can be customized according to requirements |
|||||
