Position：Home > products > Vacuum Furnace > 1200℃ Vacuum furnace >

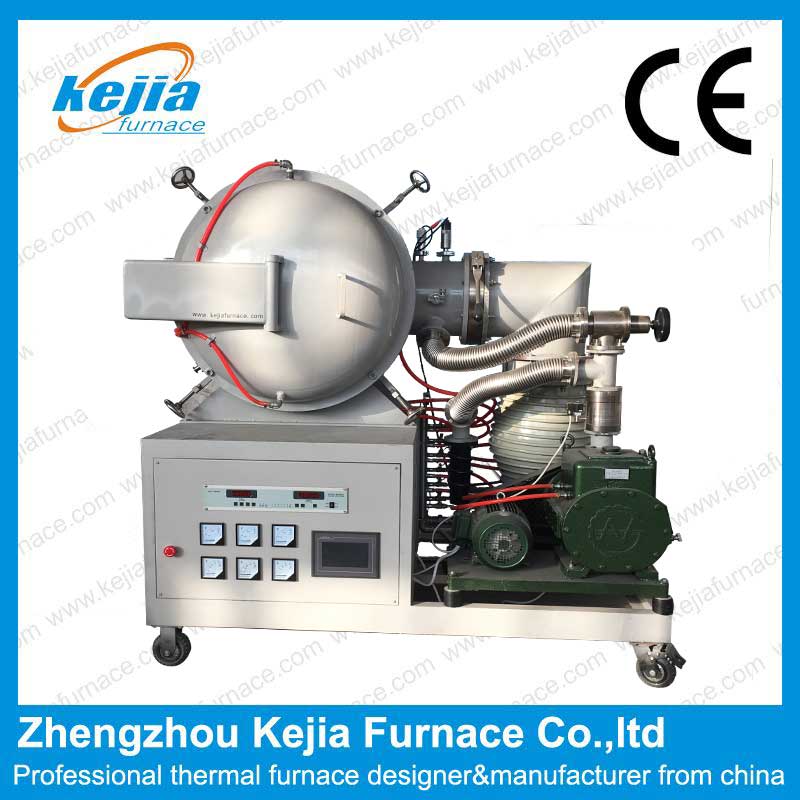

1200℃ high vacuum sintering furnace

Model：KJ-V1000-IT

Description：

Vacuum Sintering furnace is used for heat treatment of metal materials in high vacuum,protective atmosphere,also used for heat treatment of special materials.

Product Consultation Online Chat

Detailed

Features of high vacuum sintering furnace：

1. Great temperature uniformity.

2. PID automatic control via SCR power control

3.Over temperature protection and alarm allows for operation without attendant(s)

4. The chamber of a stove or furnace insulation materials

Descriptions:

Model	vacuum sintering furnace
Furnace structure	LED
Max. Temperature	1000°C
Continuous working Temperature	≤1100°C
Heating Rate	Suggestion 0~10°C/min Max.20°C/min
Rated power	25KW
Accuracy	±1°C
Furnace Chamber materials	Heat insulation screen material
Shell structure	Double shell, oven door and furnace with water circulation system
Heating Element	Aludirome
Thermocouple	K type
Overall dimensions	1750mmX1350X1980mm
Working Voltage	AC 220v, single phase, 50 Hz / 60Hz
Temperature ControL	PID automatic control via SCR power control

The size and temperature of the furnace can be customized according to the user's requirements
