product description:

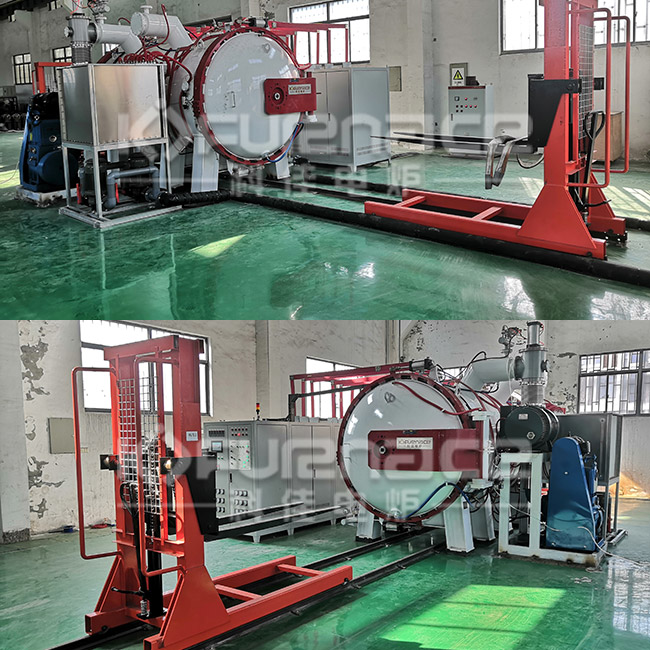

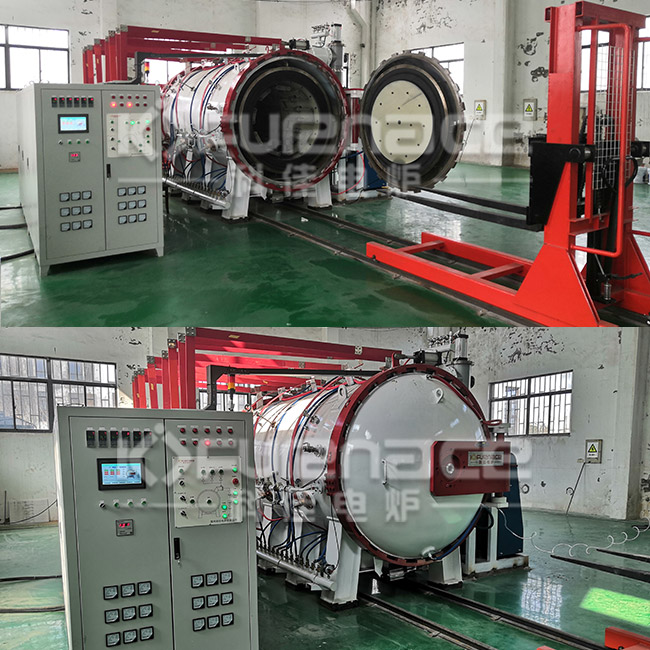

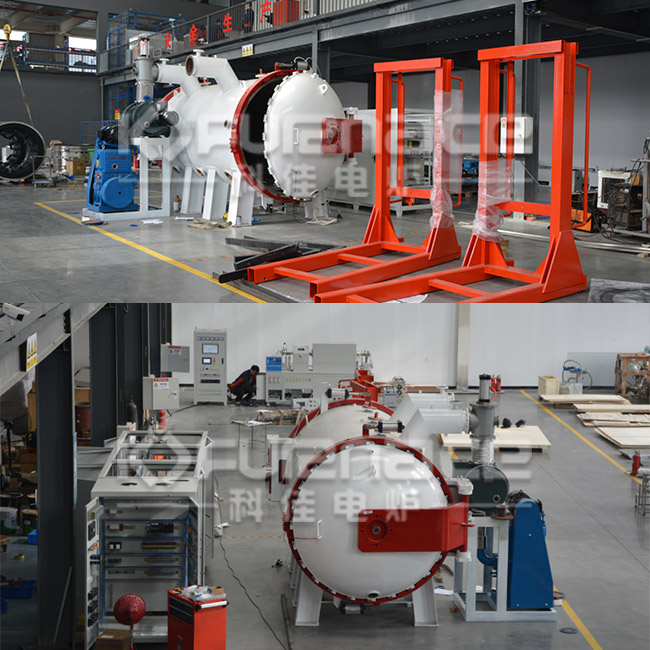

The high-temperature vacuum sintering furnace is a horizontal steel structure furnace body, and the furnace door adopts a double-door structure with two sides and side openings. It is composed of a furnace body, a vacuum system, a water cooling system, an electrical part, and a feeding cart.
Applications:
This high-temperature vacuum sintering furnace is mainly used for heating and sintering metal refractory compound powder metallurgy materials, carbon and graphite products, ceramic materials, etc. in a vacuum state, and is widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics and other fields .
Features:
Integrated design, compact structure, beautiful appearance
It adopts touch screen + PLC control mode, with high degree of automation, intuitive operation and powerful functions.
Multiple sintering processes can be stored, and can be called directly after editing once.
The sintering data can be recorded in real time, can be queried, and can be exported in the form of Excel.
Multi-temperature zone temperature control, fast heating rate, good furnace temperature consistency
The sintering temperature is high, and the high temperature resistant and non-deformable graphite rod is used to generate heat. The long-term working temperature can reach 1800°C
Equipped with a vacuum unit, it can realize heat treatment of materials under high temperature and high vacuum.
The high-temperature vacuum sintering furnace is a horizontal steel structure furnace body, and the furnace door adopts a double-door structure with two sides and side openings. It is composed of a furnace body, a vacuum system, a water cooling system, an electrical part, and a feeding cart.
Applications:
This high-temperature vacuum sintering furnace is mainly used for heating and sintering metal refractory compound powder metallurgy materials, carbon and graphite products, ceramic materials, etc. in a vacuum state, and is widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics and other fields .
Features:
Integrated design, compact structure, beautiful appearance
It adopts touch screen + PLC control mode, with high degree of automation, intuitive operation and powerful functions.
Multiple sintering processes can be stored, and can be called directly after editing once.
The sintering data can be recorded in real time, can be queried, and can be exported in the form of Excel.
Multi-temperature zone temperature control, fast heating rate, good furnace temperature consistency
The sintering temperature is high, and the high temperature resistant and non-deformable graphite rod is used to generate heat. The long-term working temperature can reach 1800°C
Equipped with a vacuum unit, it can realize heat treatment of materials under high temperature and high vacuum.
| Product name | High temperature graphite vacuum sintering furnace | ||
| Model | KJ-VS1800-936CWD | ||
| Material area size | 600×600×2600mm(Can be customized according to customer needs) | ||
| Heating element | graphite rod | ||
| Working temperature | 1800℃ | ||
| Number of heating zones | 3 zone(Can be customized according to customer needs) | ||
| thermocouple | Tungsten sheath thermocouple | ||
| ultimate vacuum | 0.5pa (empty furnace, cold state, purified) | ||
| Vacuum unit | Roots pump, sliding valve pump unit (including pneumatic baffle valve, vacuum pipeline and vacuum measuring instrument, etc.) | ||
| Temperature control method | Touch screen + PLC + transformer Multi-stage programmable temperature control | ||
| Furnace door locking method | Pneumatic locking ring locking | ||
| inflation pressure | 0.02mpa | ||
| other sizes available | |||
| work area size（mm） | volume (L) | work area size（mm） | volume (L) |
| 200*200*300(Can be customized according to customer needs) | 12(Can be customized according to customer needs) | 400*400*600(Can be customized according to customer needs) | 96(Can be customized according to customer needs) |
| 200*200*400(Can be customized according to customer needs) | 16(Can be customized according to customer needs) | 500*500*700(Can be customized according to customer needs) | 175(Can be customized according to customer needs) |
| 350*350*350(Can be customized according to customer needs) | 43(Can be customized according to customer needs) | 600*600*900(Can be customized according to customer needs) | 324(Can be customized according to customer needs) |
| More sizes can be customized | |||
