Intelligent Zirconia Sintering Furnace

Features of Intelligent Zirconia Sintering Furnace

1.Bottom entry sintering furnaces have heating elements evenly distributed around the heating chamber. This provides a much more even heat distribution throughout the muffle and a more consistent firing temp of all units.

2.We use 6 pieces nodiscoloration Mosi2 heating elements surrounding the chamber with long lifttime.

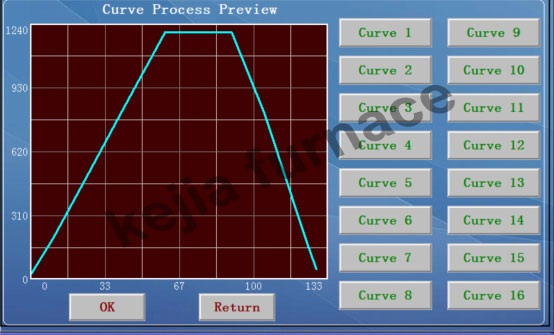

3.Multiple programs and multiple firing stages for your choose.
And there is a paperless recorder,You can check the sintered temperature at real time

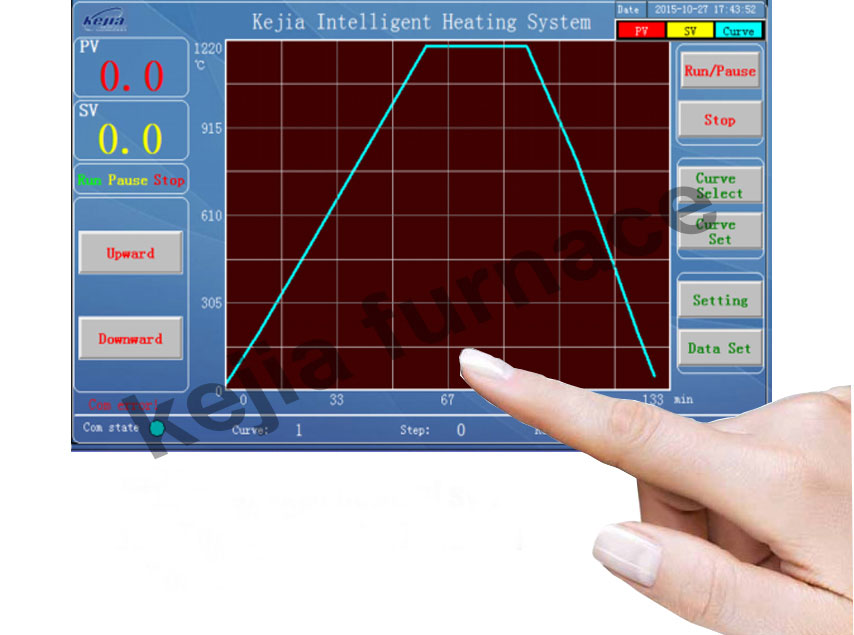

4.Touch screen operation pannel,Real-time temperature display,The dynamic temperature curve.

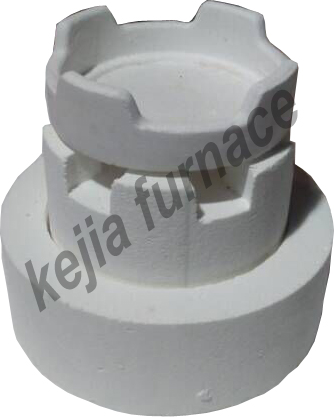

5.The sagger/crucible is zigzag,It can be stacked.The tray is hollow out,
Bottom of crucible still can be heated.The heating is much more uniform.

Technical Parameters

Model	KJ-M1700-DL
Chamber size	110x110mm
Working temperature	1600℃
Thermal control	Touch screen interface
Temperature Accuracy	+/-1 ℃
Heating Element	High Purity MoSi2
Chamber	Alumina ceramic fiber
Max. Power	1.8Kw
Working power	AC110/220/440V 50/60HZ
Dimensions	530x530x820mm
Gross weight	75Kg

Working temperature, dimensions, chamber size can be made according special requirement

lab dental zirconia sintering furnace for used

Product Display
