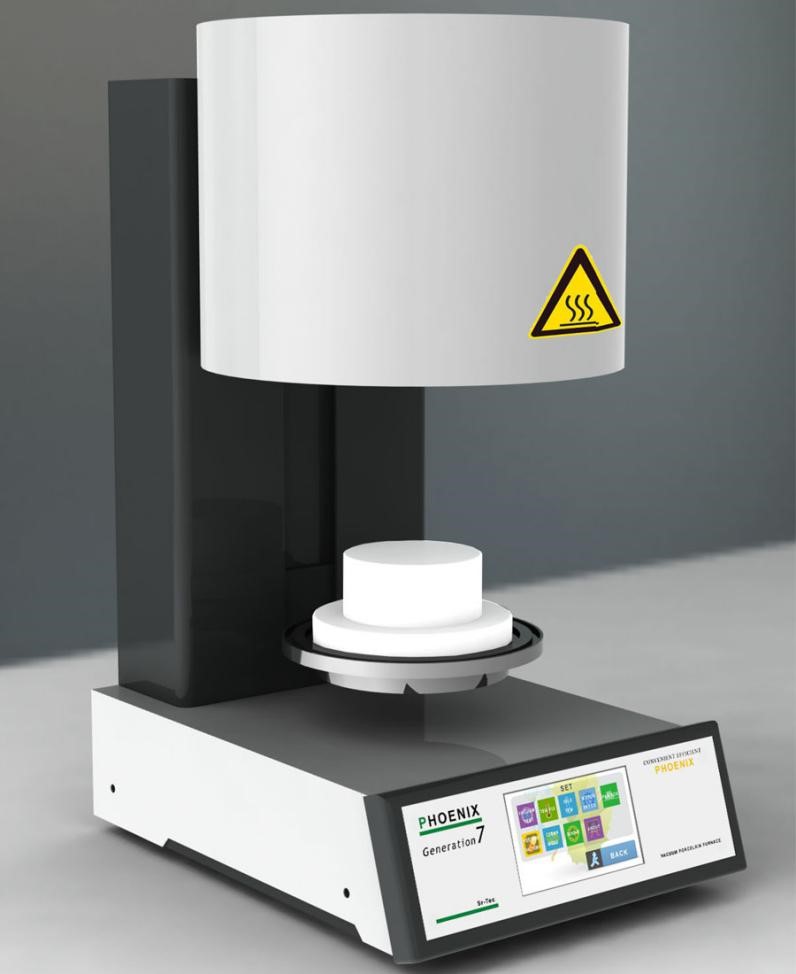

THE FUNCTIONS OF Intelligent dental Vacuum Porcelain Furnace:
●High quality of the function of temperature adjustmentautomatically,ensure the actually temperature error within +/-1.
●Easy to operate,compact size,the smallest size in the world at present.
●Precision stepper motor drive, the smooth and jitter-free functioning,
noise-free,Speed programmable.
●Spiral quartz chamber of furnace
●Temperature adjustment automatically before every firing procedure.
●True color touch screen, the operation is simple and convenient.
●Built in 99 program.
THE INTRODUCTION OF SPECIFICATIONS：
OPERATION：
The velocity of temperature increasing: 200℃/min max.
(392°F /minute)
The max temperature: : 1200℃ max
(2283°F)
The time which can be kept at the max temperature: 2 H
Vacuum level: 0-101%
TYPICAL SPECIFICATION：
Wx Dx H : width 27cm（10.2”） Depth 37cm（11.8”） Height 54cm
（16.5”）
Usable measure (firing chamber): 9cm（3.5”）
Net weight：17Kg
Weight include the package: 21.5Kg
Electric Power：
Operation range：100-120V 50/60HZ 230V 50/60HZ
Electric current：14.5ampere@110V 7.0ampere@230V
Power：max 1500w
AMBIENT CONDITIONS
• Indoor use
• Ambient temperature: 2°C to 40°C
• Relative humidity 80% at 31°C
• Maximum altitude: 1500 m (Special Model:3500m)
• Rated voltage fluctuations must not exceed plus/minus 10% of the rated
Voltage

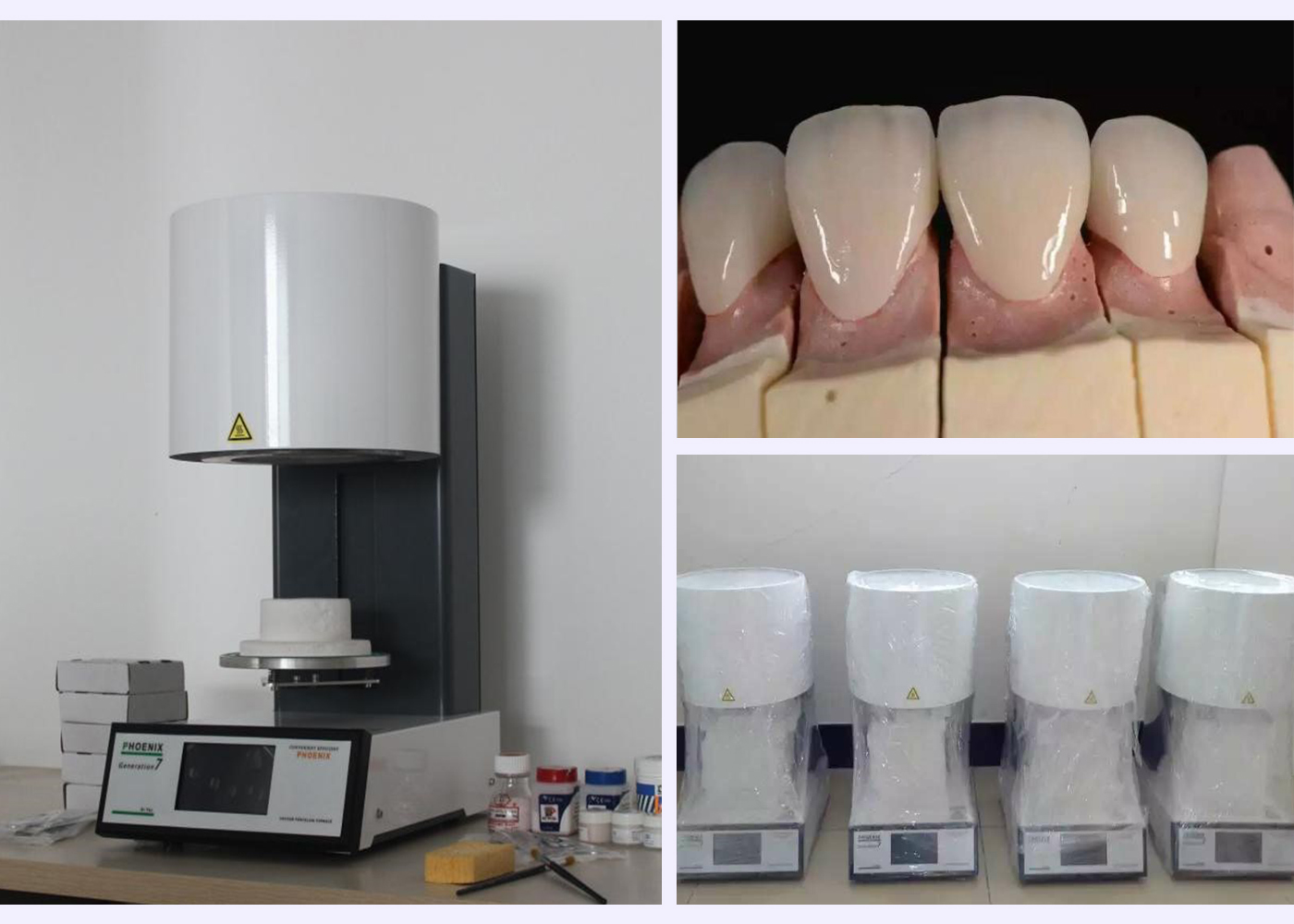

Baking effect：
Packing list
| No. | Name | Reference Picture | Unit | Quantity |
| 1 | KJ-PHOENIX7 Dental Porcelain |
 |
set | 1 |
| 2 | Vacuum pump |
 |
piece | 1 |
| 3 | spare O ring |
 |
set | 1 |
| 4 | Power cable |
 |
piece | 1 |
| 5 | Tray |
 |
Piece | 1 |
| 6 | Instruction |
|
Piece | 1 |
