Product Introduction:

The PECVD rotary tube furnace system is suitable for surface film deposition of powder materials. The system consists of a high-power RF power supply (500W, 13.56MHz), a vacuum system, and a rotary tube furnace. Utilize plasma characteristics to control or influence gas phase reactions and chemical reaction processes on material surfaces, and deposit thin films at appropriate temperatures. PECVD deposited thin films have good electrical properties, good substrate adhesion, and good step coverage, which make them widely used in fields such as large-scale integrated circuits, optoelectronic devices, MEMS, and so on. It belongs to a type of pecvd systems.

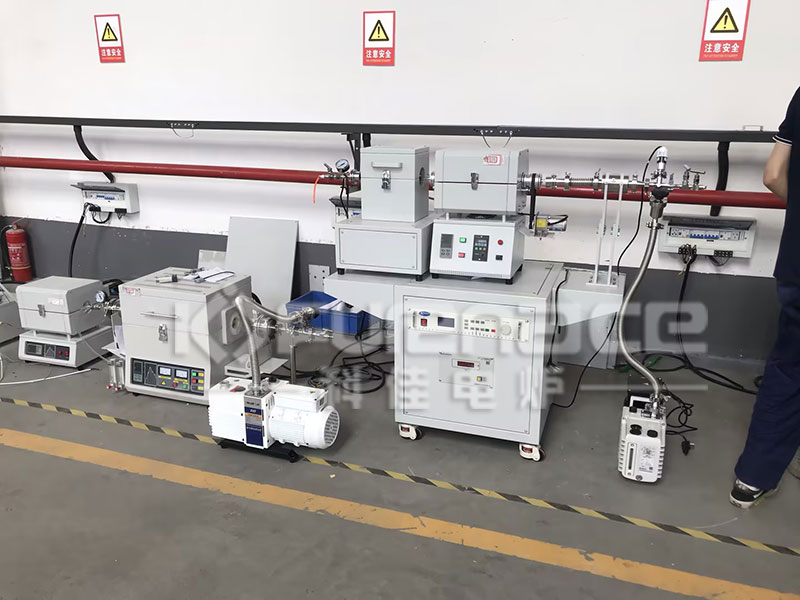

Actual photo of PECVD rotary tube furnace

Main product advantages:

1. PECVD has the advantages of low basic temperature, fast deposition rate, good film quality, fewer pinholes, and less cracking;
2. In the PECVD process, due to the impact of high-speed electrons in the plasma on neutral reaction gas molecules, neutral reaction gas molecules will become fragments or be in an activated state, which is prone to reactions;
3. By utilizing radio frequency and other means, gases containing atoms composed of thin films can form a plasma locally, which has strong chemical activity and is prone to reactions, resulting in the deposition of the desired thin film on the substrate;
4. The vacuum system consists of a rotary vane vacuum and a digital vacuum gauge, with a cold limit vacuum degree of up to 10Pa;
5. Adopting quick connect flange sealing, easy and fast loading and unloading;
6. The heating area adopts a single temperature zone with a heating zone of 200mm, which is easy to operate, reliable in sealing, and has high comprehensive performance indicators.
7. The furnace tube adopts customized variable diameter furnace tube, with a quartz feeding table inside the tube wall, allowing the material to be heated more fully. The furnace tube rotates at 360 ℃ and the rotation speed is adjustable.
8. The temperature control system adopts PID intelligent program for temperature control, and can set multiple temperature rise and fall programs.
9. The flange is equipped with an inlet and outlet cyclone adapter, which can introduce inert protective gases such as nitrogen and argon, and can be used in atmospheric environments.
10. Safety protection, with over temperature protection function. When the temperature exceeds the allowable setting value, the automatic alarm protection function ensures safe and reliable operation.
13. Our company has the ability to independently develop, design, produce, and process our machines. We provide lifelong parts replacement and upgrade services.

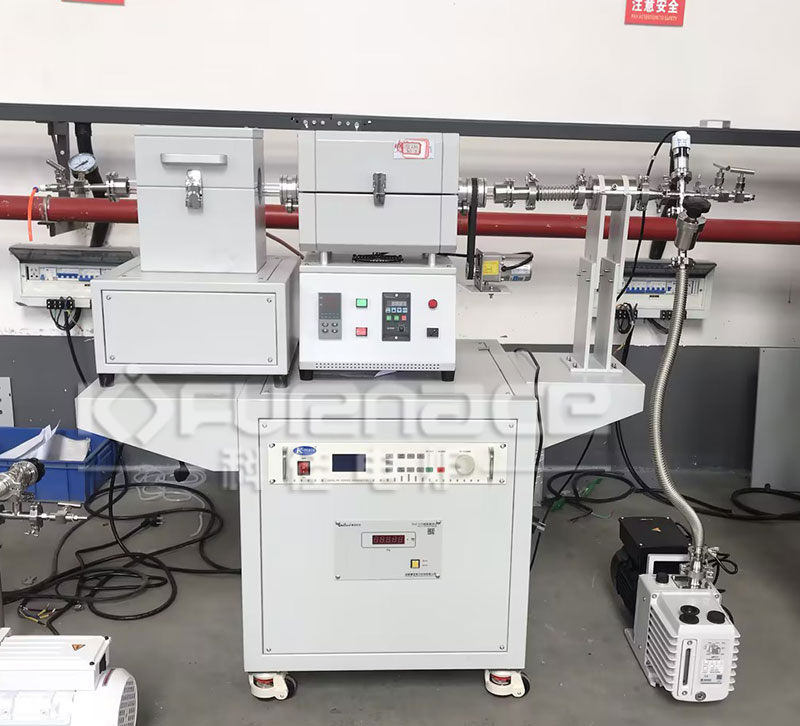

Actual photo of PECVD rotary tube furnace

The main technical parameters:

Product name	PE rotary tube furnace
Product model	KJ-TX1100-S50LK1
Furnace material	The furnace adopts alumina polycrystalline fibers
Furnace tube size	Both ends have a diameter of approximately Φ 30mm, middle size Φ 50mm total length approximately 1200mm
Heating zone	200mm
Furnace tube material	Quartz furnace tube
Working temperature	≤1000℃
Maximum temperature	1100℃
Heating element	Alloy heating wire
Temperature control accuracy	±1℃
Heating rate	0-20 ℃/min, recommended 10 ℃/min, adjustable according to experimental process
Temperature testing element	K-type thermocouple
Temperature control system	Adopting intelligent multi-stage PID programmable control The temperature control system adopts artificial intelligence regulation technology, with PID regulation and self tuning functions, and can program multiple temperature rise and fall programs; 1. Adopting PID method to adjust and control temperature, multiple temperature rise and fall programs can be set 2. Temperature control accuracy ± 1 º C 3. Equipped with over temperature protection and couple breaking protection. When over temperature or couple breaking occurs, the heating circuit of the electric furnace will automatically cut off 4. The instrument has the function of temperature self-tuning
Sealing method	The sealing method using magnetic fluid and vacuum flange provides better sealing effect
Rotation rate	15rpm/min adjustable
Rotating structure	Rotating method, the furnace tube can rotate at 360 ℃, and the furnace body can tilt
Working voltage	AC 220v 50Hz
Heating power	2KW
Vacuum system	1. Adopting DRV-10 rotary vane vacuum pump, the cold state limit vacuum degree can reach 10Pa, and the vacuum pump includes a dust filter 2. KF quick connect, stainless steel corrugated pipe, manual baffle valve and flange, connected to vacuum pump; 3. Digital vacuum gauge display
Plasma power supply system	Power range 0-500W (continuously adjustable) Operating frequency 13.56MHZ+0.005% Working mode：Continuous output RF output impedance interface N-type, female (50 Ω) Power stability ≤ 2W Maximum reflected power 70W Power protection settings include DC overcurrent protection, amplifier over temperature protection, and reflected power protection Supply voltage/frequency single-phase AC (187V-253V) 50-60HZ Cooling method: air cooling
Provide relevant accessories	Lifetime warranty for crucible hooks, high-temperature gloves, thermocouples, customized furnace plugs, manuals, warranty cards, etc
After sales service	12 month warranty, lifetime warranty (free accessories such as heating elements and furnace tubes are not included in the warranty scope)

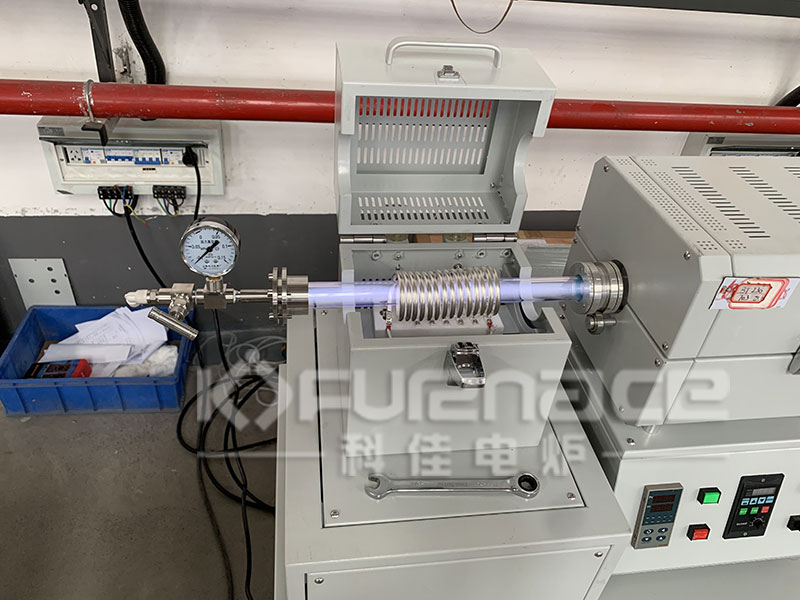

PECVD plasma radio frequency
