Classification and Applications of Vacuum Furnaces

With the continuous advancement of technology, vacuum furnaces play an increasingly crucial role in various industrial fields. Depending on their design and intended applications, vacuum furnaces can be classified into several categories. This article will introduce some common classifications of vacuum furnaces and their applications in different industrial sectors.

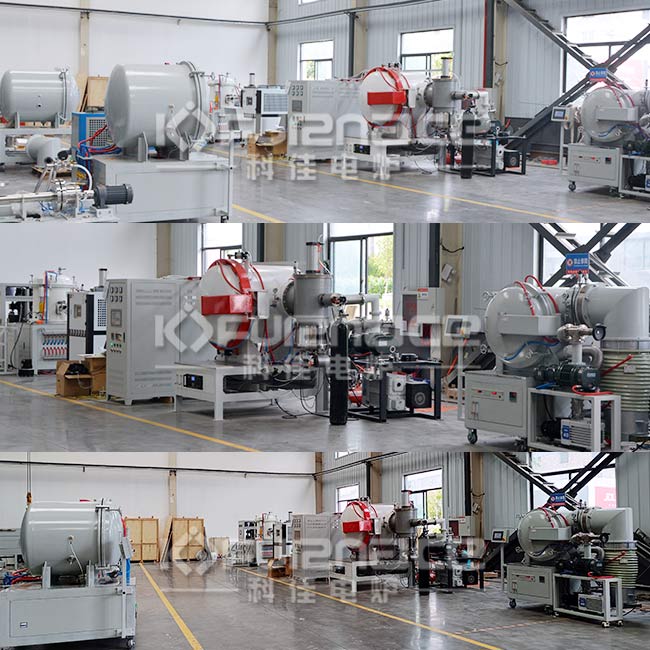

Various types of vacuum furnaces

1. Classification by Heating Method

• Resistance Heating Vacuum Furnace: Utilizes resistance heating elements to generate heat within the material, suitable for processes such as metal heating and annealing.
• Induction Heating Vacuum Furnace: Applies the principle of induction heating, generating heat in the workpiece through an alternating electromagnetic field. It is suitable for high-frequency induction heating applications, such as melting and heat treatment.
• Radiation Heating Vacuum Furnace: Employs radiation heating by using electric heating elements to produce electromagnetic waves, suitable for applications requiring uniform surface heating.


  Industrial grade vacuum furnace (click on the image to view product details)

2. Classification by Purpose

• Heat Treatment Vacuum Furnace: Used for heat treatment processes such as annealing, quenching, and solution treatment of metal materials to ensure ideal mechanical properties.
• Alloy Melting Vacuum Furnace: Specifically designed for melting alloy materials, ensuring high-quality alloy products through precise temperature and vacuum control.
• Powder Metallurgy Vacuum Furnace: Applied in powder metallurgy processes to achieve sintering and shaping of powder alloys by controlling temperature and atmosphere.
• Vacuum Furnace for Electronic Component Manufacturing: Used in the manufacturing processes of electronic components, including vacuum sealing and reflow soldering, ensuring the stability and reliability of components.

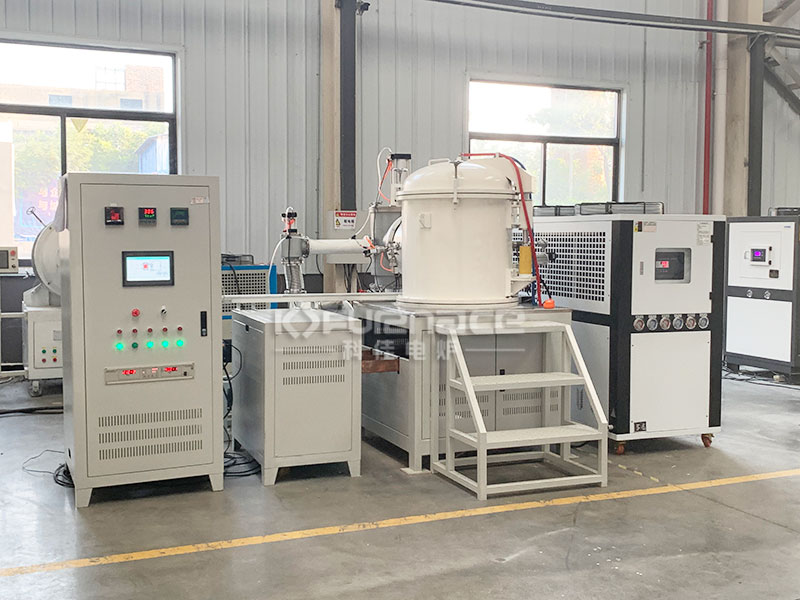

  Vertical graphite vacuum furnace (click on the picture to view product details)

3. Classification by Operating Temperature

• Low-Temperature Vacuum Furnace: Suitable for lower temperature ranges, such as laboratory research and processing certain special materials.
• Medium-Temperature Vacuum Furnace: Operates within moderate temperature ranges and is widely used for heat treatment and modification of metals and alloys.
• High-Temperature Vacuum Furnace: Capable of reaching high temperatures, used for the treatment of high-temperature alloys, ceramics, and other materials to meet specific industrial needs.


  Various types of vacuum furnaces (click on the image to view product details)

4. Classification by Operational Mode

• Batch Vacuum Furnace: Suited for large-batch production, enhancing production efficiency, commonly used in industrial production lines.
• Continuous Vacuum Furnace: Achieves continuous production through conveyors or rotating disks, suitable for large-scale continuous production requirements.

By understanding these different types of vacuum furnaces, engineers and manufacturers can better select equipment that suits their specific applications. Each type of vacuum furnace has unique advantages and applicable scopes, so consideration of process requirements, budget constraints, and performance indicators is essential to ensure that the chosen vacuum furnace meets the practical needs of the application.

If you want to learn more about vacuum furnace types, you can click on Vacuum Furnace or consult online customer service to learn more!
