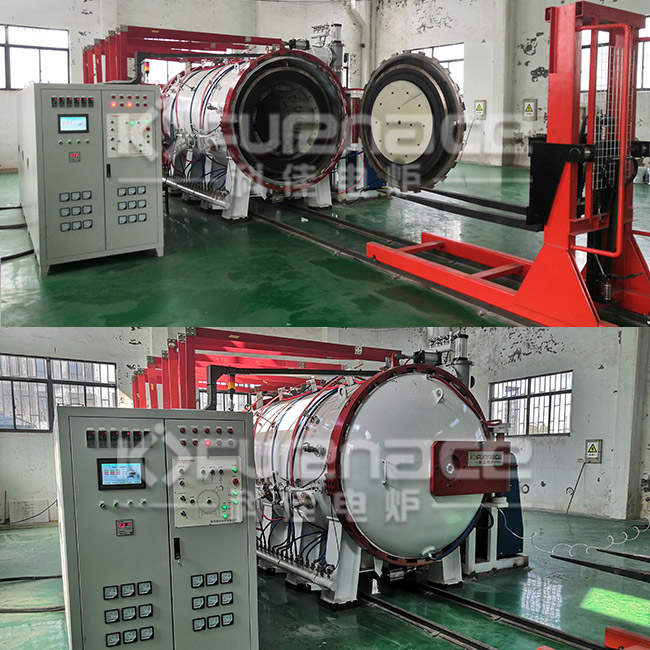

The customized high-temperature graphite vacuum sintering furnace was put into use!

The high-temperature graphite vacuum sintering furnace customized by domestic customers with a long-term working temperature of up to 1800 ° C has been put into use! Customers report that the sintering effect is particularly good and the performance is very stable.

The following is a brief introduction to the structure and characteristics of the sintering furnace:
The structure of the sintering furnace:
The high-temperature vacuum sintering furnace is a periodic, horizontal single-chamber furnace, which consists of a furnace body, a vacuum system, a water cooling system, and electrical components.
The furnace body is mainly a horizontal steel structure furnace body, and the furnace door adopts a double-door method with two side openings. The furnace cover is equipped with observation windows, so that the temperature and conditions in the furnace can be directly seen. A thermocouple device, vacuum pressure gauge, vacuum measuring device, furnace door locking device, multiple electrode outlets, gas charging device, gas outlet device, vacuum connection port, gas filtration and purification device, etc. are installed on the furnace body. The heating body is a graphite rod, and the power is introduced through the water-cooled electrode. The insulating material on the electrode is made of high-strength and high-purity boron nitride, and the insulation layer is composed of graphite hard felt, graphite carbon felt and stainless steel fixing bracket. Opening the furnace cover allows easy maintenance and replacement of heating elements, and the electrode devices have a water-cooling cycle. Digital display pressure gauge control, when the pressure is greater than the set value, it will realize the automatic exhaust function, and if it is less than a certain pressure value, it will realize the automatic inflation function.

Product advantages are:
1. The furnace door adopts the double-door method with two side openings. The furnace cover is equipped with observation windows, which can directly see the temperature and conditions in the furnace
2. Digital display pressure gauge control, when the pressure is greater than the set value, it will realize the automatic exhaust function, and if it is less than a certain pressure value, it will realize the automatic inflation function
3. Multi-zone temperature control is optional;
4. The sintering temperature is high, and the high temperature resistant and non-deformable graphite rod is used to generate heat. The long-term working temperature can reach 1800°C
5. The sintering data can be recorded in real time, can be queried, and can be exported in the form of Excel

Our company has been engaged in high-temperature equipment manufacturing for more than ten years. Representative products include: Vacuum furnace, Atmosphere furnace, Tube furnace,  CVD systems, PECVD systems, etc., with good product quality, mature technology and good after-sales service. Need to customize, welcome to consult and buy!
