Kejia 1600 ℃ bell muffle furnace

Kejia 1600 ℃ bell muffle furnace

Model:KJ-MZ1600-36LZ

Description:

The KJ-MZ1600-36LZ bell jar box furnace adopts an integrated design of furnace body and intelligent control, making the entire furnace body beautiful and generous. PID programmable intelligent temperature control, phase shift triggering, furnace made

Detailed
Product Introduction:

The KJ-MZ1600-36LZ bell jar box furnace adopts an integrated design of furnace body and intelligent control, making the entire furnace body beautiful and generous. PID programmable intelligent temperature control, phase shift triggering, furnace made of alumina polycrystalline fiber material, high-quality silicon molybdenum rod heating, maximum temperature 1700 ℃, temperature field balance; The double layer furnace shell is equipped with an air cooling circulation system, which makes the temperature of the furnace shell lower than 55 ℃, and the bottom of the furnace door rises and falls, saving energy and safety. The back of the lifting platform is equipped with reflective glass, which can clearly observe the results of the heat treatment on the back of the material. It belongs to a type of muffle furnace.

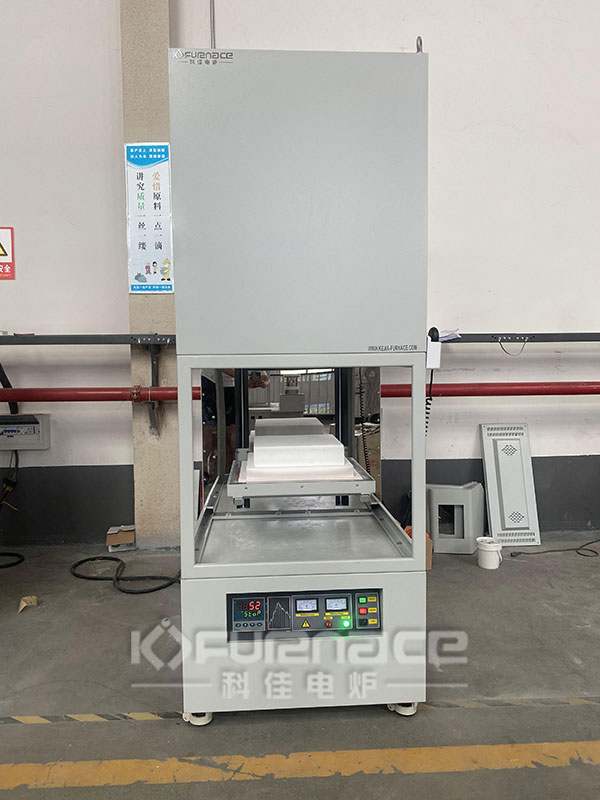

Actual photo of Kejia 1600 ℃ bell muffle furnace

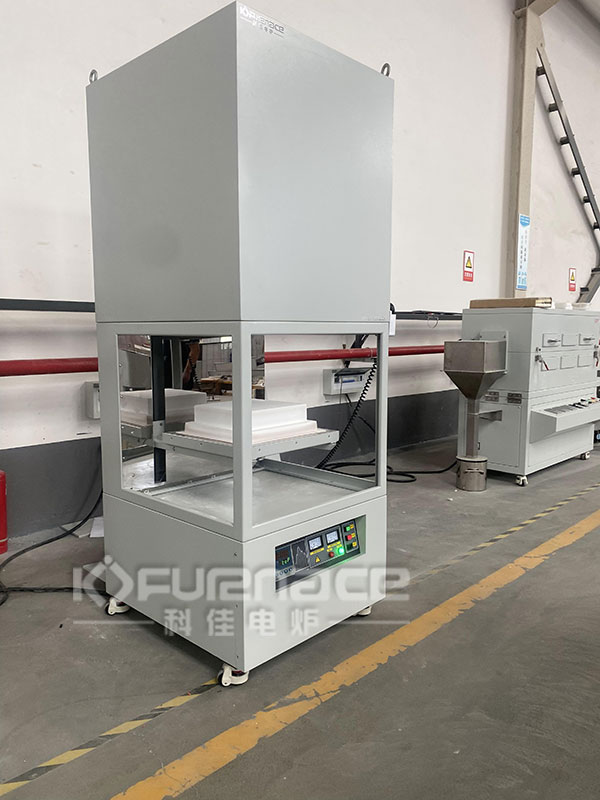

Actual photo of Kejia 1600 ℃ bell muffle furnace


Application:

The KJ-MZ1600-36LZ bell jar box furnace can be widely used in heat treatment work such as high-temperature experiments, material sintering, composition analysis, and quality inspection in universities, scientific research institutions, and industrial and mining enterprises.


The main technical parameters:
Model KJ-BLM1600-36LZ
Furnace structure Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
Furnace liner Two layers of ceramic fiber insulation materials
First layer: 1800deg.C ceramic fiber board
Second layer: 1600deg.C ceramic fiber board
Chamber dimension 300 X 300 X 400mm
Working temp. ≤1600℃
Heating rate 0-25℃/min (Suggestion: 0-10℃/min)
Temp. accuracy +/-1℃
Thermocouple B-type thermocouple
Temp. control PID automatic control via SCR (Silicon controlled rectifier)
Power control with phase angle fired, current limiting resistor
30 programmable segments for precise control
Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.
Over temperature protection and alarm allows for operation without attendant
Heating element MoSi2 heating rods
Size: 6/12x350(hot zone)x220(cold zone )x 50
Two on each wall.
Working voltage 380V, 60Hz, Two phase
Power 12 kW
Lifting tray speed of door up/down lift 80-100mm/second
extension cable and up/down button handle
Warranty Period 1 year (Consumable uncovered.)


Actual photo of Kejia 1600 ℃ bell muffle furnace
Actual photo of Kejia 1600 ℃ bell muffle furnace
