1100℃ box type asher with chimney

The 1100℃  box type asher with chimney is suitable for ashing and ash analysis and determination of products in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, universities, research institutes, industries, etc. Click to learn more about muffle furnace.

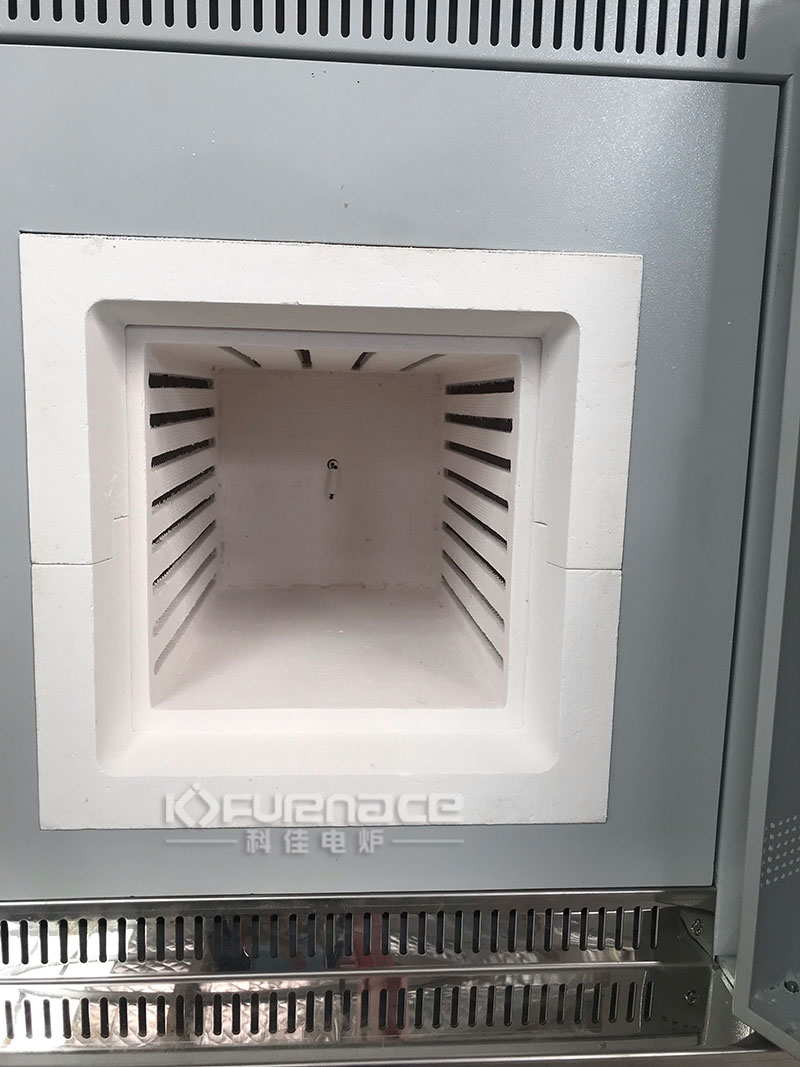

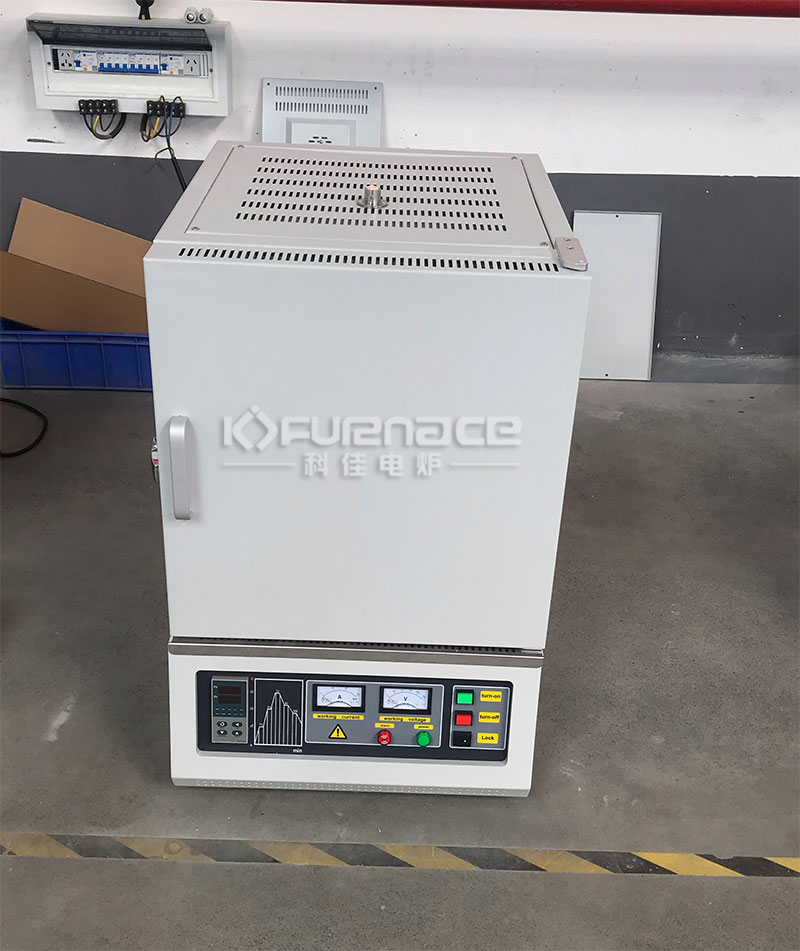

1100 ℃ box type asher with chimney live shot


1100 ℃ box type asher with chimney live shot

Technical parameter
Model				KJ-M1100-12LZ
Chamber size				200x200x300mm (Width x Height x Depth)
Volume				12L
Max. temperature				≦1200 ℃
Working temperature				≦1100℃
Heating Element				Electric resistance wire with Mo

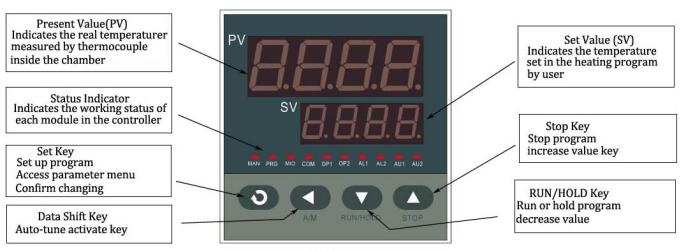

Temperature control				● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermal couple broken protection. ● Over temperature protection and alarm allows for operation without attendant.
Heating rate				0-10 ℃ /min
Thermal couple				K type
Temperature accuracy				±1℃
Working voltage				220V 50Hz(or according to your request)
Max. Power				4KW
Certification				CE
Standard Package
Furnace body		1 set	Operation manual		1 book
High temperature gloves		1 pair	Crucible clip		1 pc
Warranty
Warranty	One-year limited warranty with life time support.  (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products)

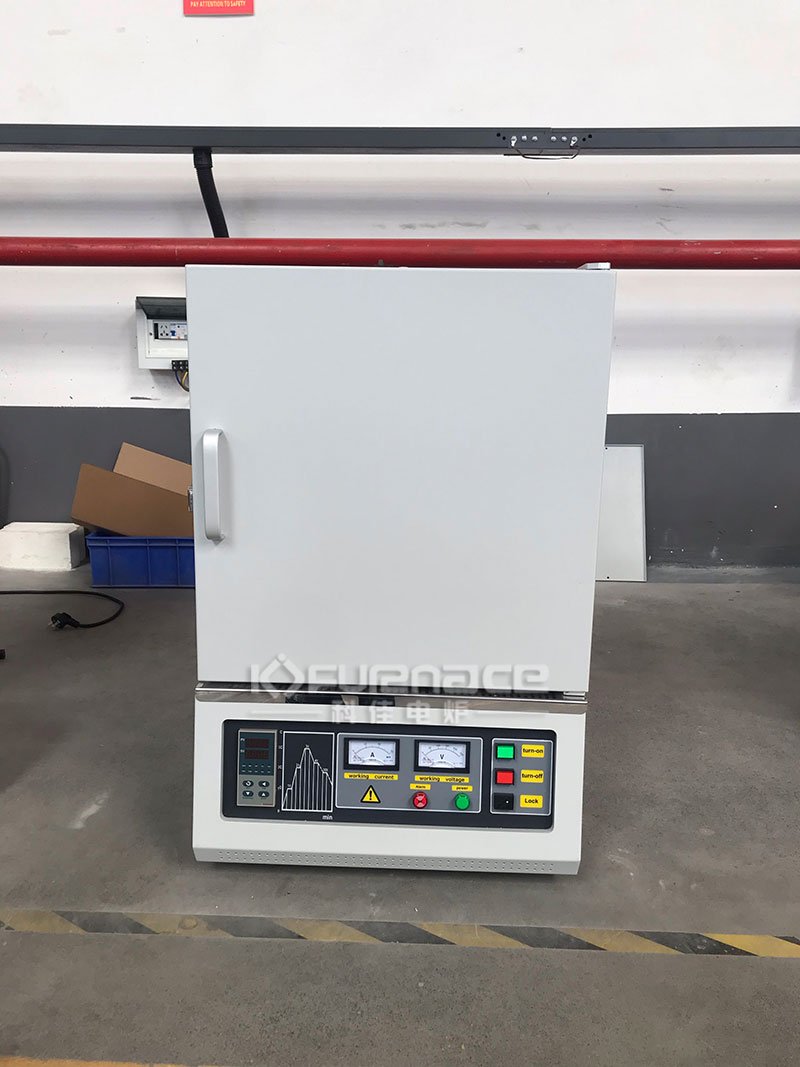

1100 ℃ box type asher with chimney live shot


1100 ℃ box type asher with chimney live shot
