Product description:
Box type furnace capable of treating waste gas combustion is a customized furnace composed of upper and lower double furnace structure. The upper part adopts a tubular structure for waste gas treatment, and the lower part adopts a box-type structure, with a temperature of up to 1700 °C, which is used for high temperature treatment of materials. The secondary treatment of the combustion chamber is followed by the discharge treatment of the exhaust gas.
The main technical parameters:
Box type furnace capable of treating waste gas combustion is a customized furnace composed of upper and lower double furnace structure. The upper part adopts a tubular structure for waste gas treatment, and the lower part adopts a box-type structure, with a temperature of up to 1700 °C, which is used for high temperature treatment of materials. The secondary treatment of the combustion chamber is followed by the discharge treatment of the exhaust gas.
The main technical parameters:
| Product name | Box type furnace capable of treating waste gas combustion |
| Model | KJ-M1700-12LF |
| Effective size of furnace | 300*200*200mm(L*W*H) |
| Operating temperature | ≤1600℃ |
| maximum temperature | 1700℃ |
| Furnace material | Alumina polycrystalline fiber |
| Heating element | High quality silicon molybdenum rod |
| heating rate | 0-20℃/min, 10℃/min recommended |
| Temperature control method | Intelligent 30-segment PID programmable control (users can choose LCD touch screen) |
| Temperature control protection | With over temperature protection function |
| Operating Voltage | AC 220V two-phase |
| heating power | 6kw |
| Temperature measuring element | Type B thermocouple |
| How to open the door | side opening |
| combustion chamber | |
| Provide related accessories | High temperature gloves, crucible hook, thermocouple, instruction manual, warranty card, etc. |
| Quality Certification | CE certification, ISO certification |
| After-sales service | 12 months warranty, lifetime warranty (except wearing parts) |

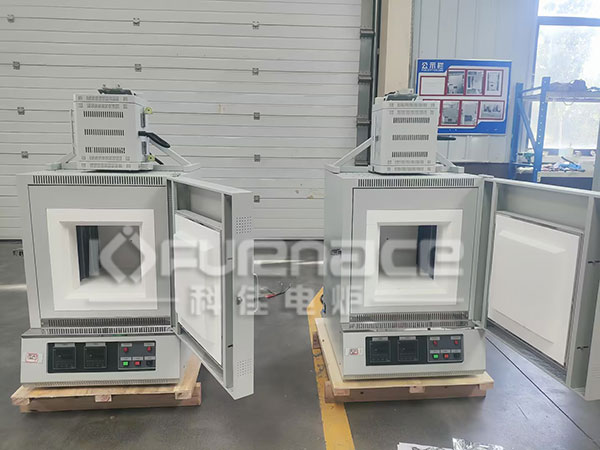

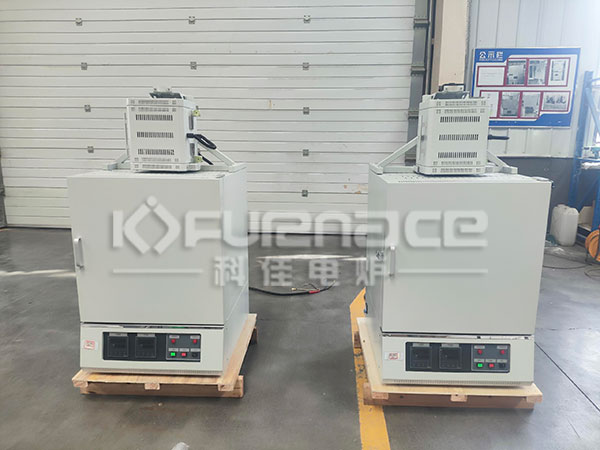

Other models with exhaust gas combustion treatment muffle furnace
Other models with exhaust gas combustion treatment muffle furnace

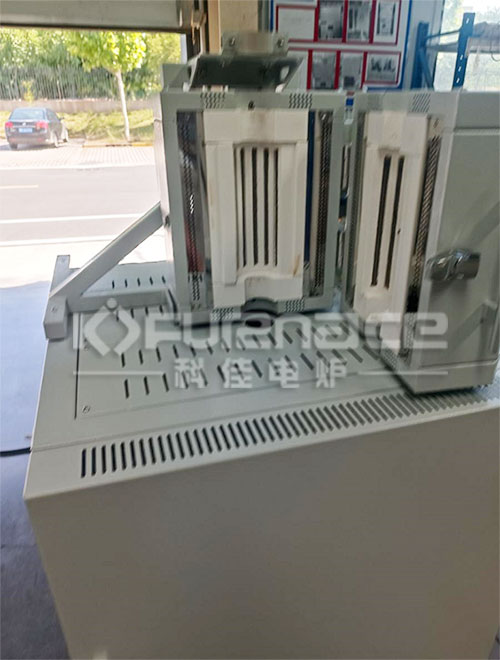

Top structure of muffle furnace with exhaust gas combustion treatment
