Product Introduction:

KJ-T1600-80 (400) is a small atmosphere tube furnace that can be set with a 30 level heating and cooling program, and has coupling burn out and overheating protection functions. The temperature control accuracy reaches ± 1 ° C. The equipment uses high-temperature resistant aluminum oxide tubes (also known as corundum tubes), so the maximum temperature of this tubular furnace can reach 1600 ° C. This product has a replaceable furnace tube setting. If you want other heating temperatures, you can choose different materials of furnace tubes, such as stainless steel tubes (0-1000 ℃), quartz tubes (0-1200 ℃), and mullite tubes (0-1400 ℃). The rotary vane pump equipped at the same time can perform simple pre vacuuming on the tube furnace. It can anneal and sinter samples under atmospheric protection or vacuum environment.Click to learn more about tube furnaces or click to consult online customer service for more information!

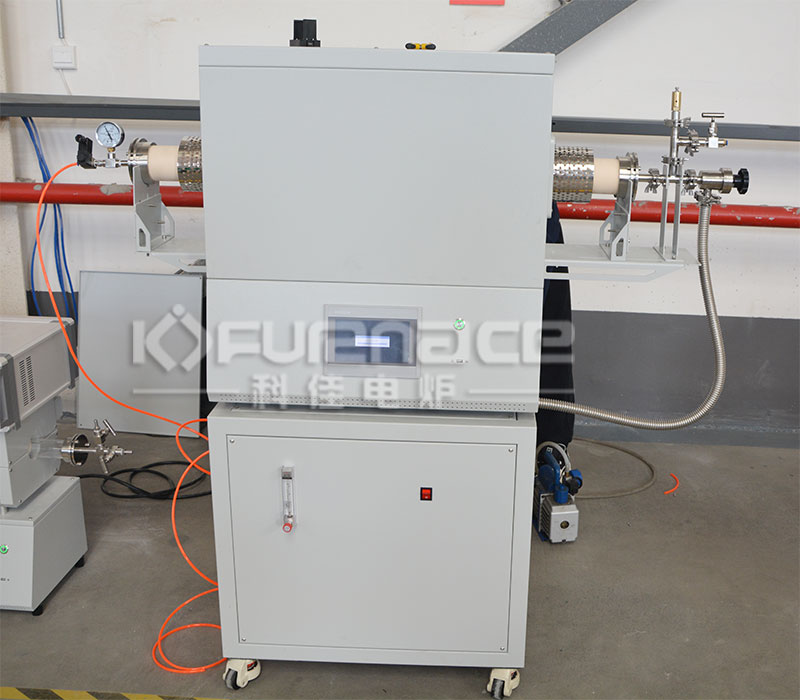

Actual photo of a 1600 C atmosphere tube furnace

The main technical features:

The furnace is made of high-temperature resistant polycrystalline material, and the furnace tube is made of high-purity quartz tube, which is resistant to high temperature and corrosion, and can work stably at a temperature of 1600 degrees.
30 programmable segments for precise control of heating rate, cooling rate, and residence time.
Built in PID automatic adjustment function, with protection for overheating and thermocouple disconnection;
Over temperature protection and alarm allow for unmanned operation.
The gas outlet is also designed with a mechanical pressure relief valve to prevent excessive pressure inside the furnace tube.

The main technical parameters:

Furnace
Display	Touch Screen
Furnace Structure	Double-layer housing, with a sliding rail
Cooling system	Air-cooling system
Tube Material	High Purity Alumina Tube
Tube Diameter	Φ80mm(OD)
Heating zone length	400mm
Max Temperature	1700℃
Working Temperate.	≦1600℃
Temperature Control	● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● Over temperature protection and alarm allows for operation without attendant.
Chamber Material	Alumina fiber
Heating Rate	0-1000℃---0-10℃/min 1000-1600℃---5℃/min
Temperature Control Accuracy	±1℃
Thermocouple	B Type
Heating element	MoSi2
Safety Device	Over-temperature Alarm Over-current protection Thermocouple broken indication
Gas S	Nitrogen Gas(25-250ml/min)
Power Supply	220V 50Hz
Max output power	6KW(Base on final design)
Vacuum Pump
Vacuum Pump	DRV-10 rotary vacuum pump KF25 clamp and bellows are used to connect tube furnace and vacuum pump Pumping Speed: 2L/S Vacuum Level: -0.1mpa Mechanical gauge including. Manually Operation Mode.
Gas system
Gas System	Equipped with float flow meter Gas Type: Nitrogen gas. Float Rate: 30-300ml/min Automatic air intake function: The system automatically starts air intake at the set temperature. Customers can set the air intake duration. The system automatically closes the valve when the air intake time is completed. The gas outlet is also designed with a mechanical pressure relief valve to prevent over pressure inside the furnace tube.
Gas System	The above valves all use pneumatic valves, and the customer needs to configure an additional air compressor on site.
Warranty
Warranty	One-year limited warranty with life time support. (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products)
Free technical support	Lifetime
After sales service
1. Our company provides a one-year warranty service for the supplied equipment (except for wearing parts and man-made damage ). During the warranty period, any equipment damage or failure caused by the equipment quality will be repaired free of charge. A life-time, high-quality maintenance services are still provided even the warranty expires 2. In case of equipment failure during the use of the equipment, the user can notify the maintenance needs by telephone, writing, fax, e-mail or other modes, and we will make a solution as soon as possible to ensure the normal operation of the equipment. 3. Our company provides free equipment operation training and simple troubleshooting and maintenance training. To ensure that the user can skillfully carry out standardized and safe operation of the product, can deal with general faults and routine maintenance and maintenance of the equipment, and ensure the normal use of the equipment. 4. Our company's technicians can provide door-to-door service (product installation and debugging, whole machine maintenance, technical explanation and operation guidance, etc.). Our company's technical consultants can answer customers' questions about technology and standard specifications and provide technical guidance at any time. 5. The company can provide transportation services, and the packaging methods are in accordance with standard safety packaging. Complete random technical information (user manual, warranty manual, related information and accessories, random tools, etc.).

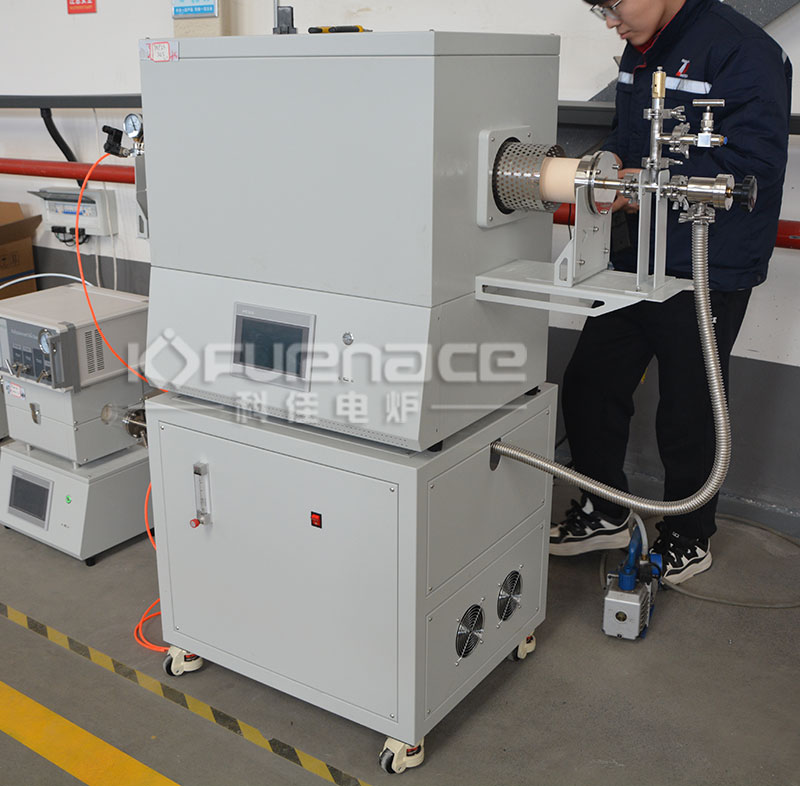

Actual photo of a 1600 C atmosphere tube furnace
