1600℃ Intelligent Vacuum Vertical Tube Furnace

The 1600 ℃ intelligent vacuum vertical tube furnace is widely used in various CVD experiments with reaction temperatures around 1600C; It can also be used for vacuum sintering, vacuum sintering of protective atmosphere, preparation of nano phase materials, battery materials, vertical fluidized beds, material material material determination, etc. Click to learn more about tube furnaces.

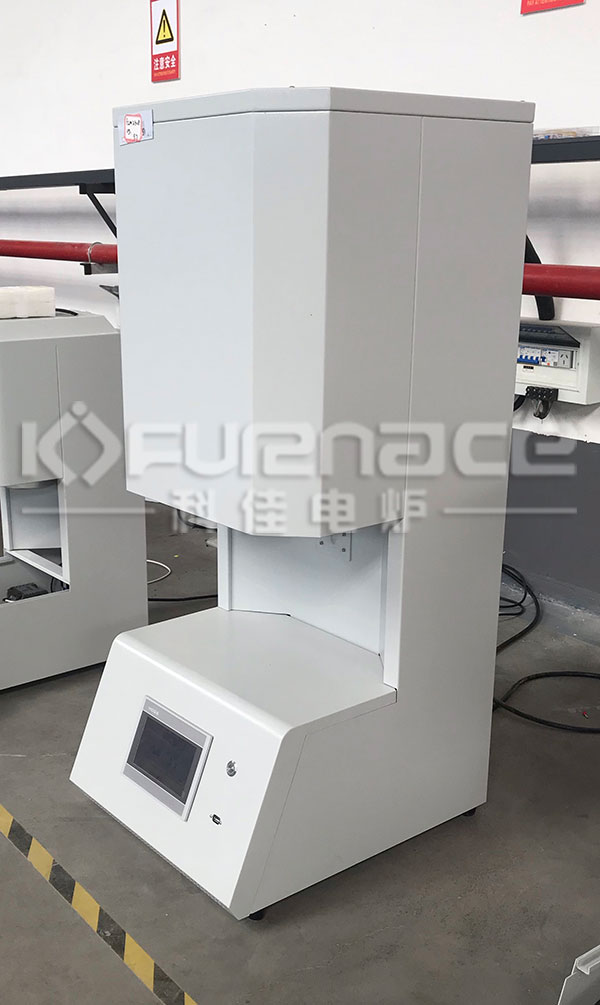

Actual photo of 1600 ℃ intelligent vacuum vertical tube furnace

1. Good temperature uniformity.
2. Over temperature protection and alarm.
3. PID automatic control is achieved through SCR power control.

Product Name		1600℃ Intelligent Vacuum Vertical Tube Furnace
Model		KJ-TL1600-L50CK1W
Tube Furnace	Display	LED Or LCD Touch screen with extra cost
	Temp.	≤1600℃
	Heating Rate	Suggestion: 0~10℃/min
	Temperature Zone	Single Zone 300mm
	Heating Element	MoSi2
	Thermocouple	B type
	Temperature Control Accuracy	±1℃
	Tube Size	For OD 50mm Tube Furnace tube will be provide by customer side.
	Temperature Control	PID automatic control via SCR power control
	Heating curves	30 steps programmable
	Power	220V, 50 Hz, single phase at max4KW
	Warranty	One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)

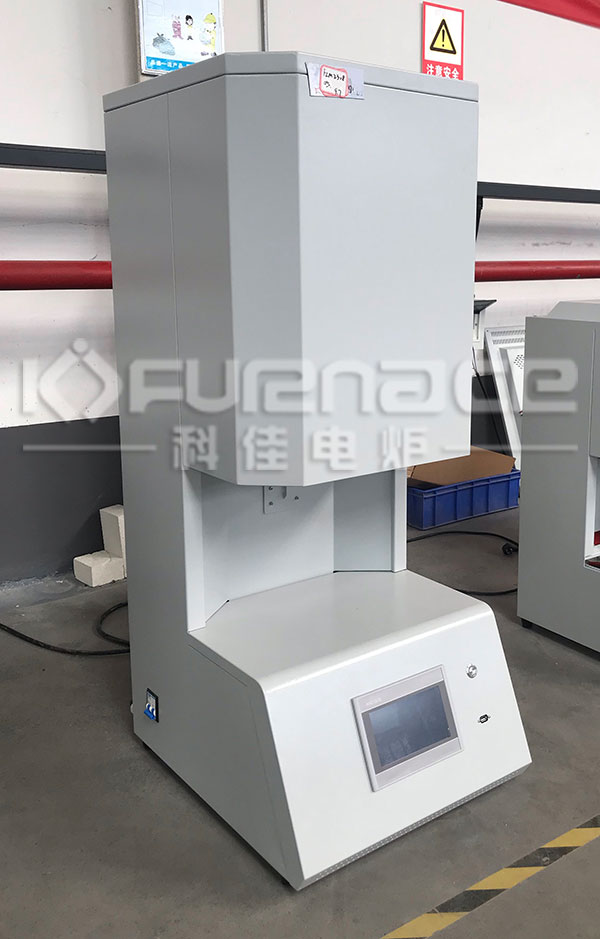

Actual photo of 1600 ℃ intelligent vacuum vertical tube furnace

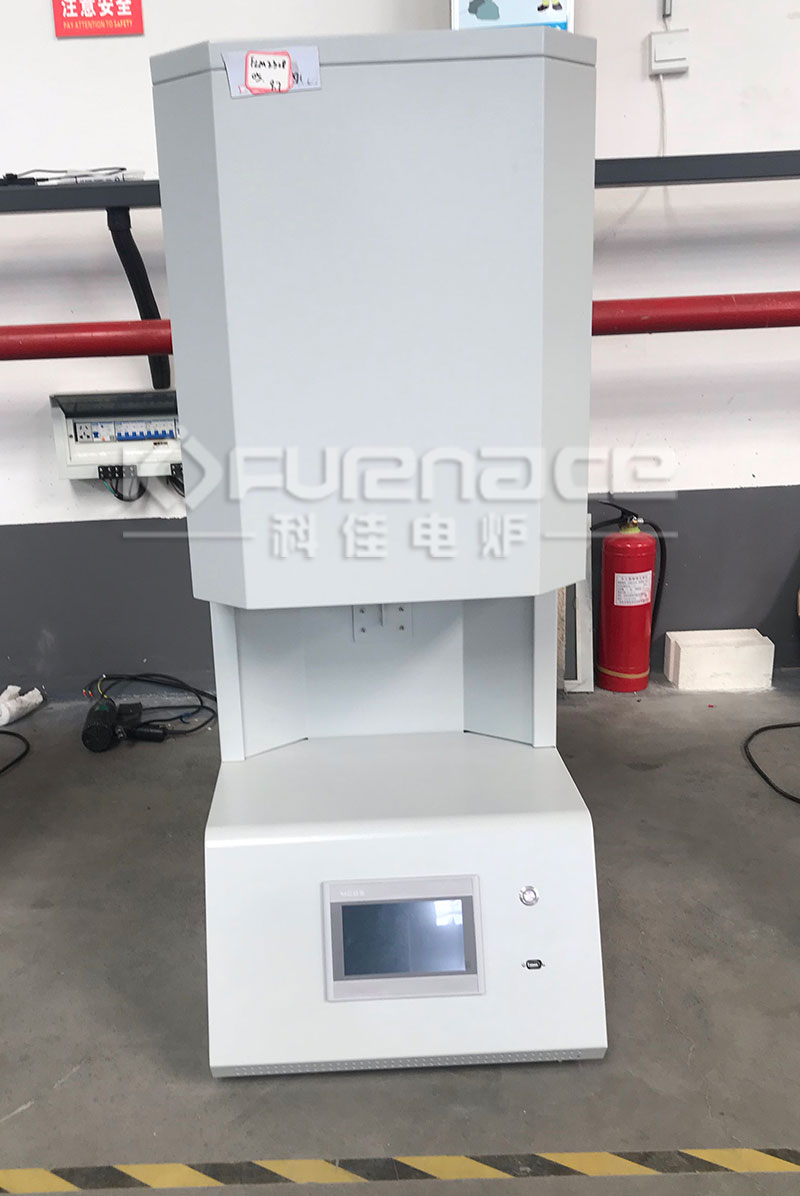

Actual photo of 1600 ℃ intelligent vacuum vertical tube furnace
