Three temperature zone rotary tube furnace with preheating

Product Introduction:

The whole system consists of one crucible furnace and a main rotary tube furnace with graphite sealing design, gas inlet and outlet with related valves are equipped, user can collect gas from the preheating furnace and main tube furnace. There are two different process technology according to client actual requirement. Belongs to a type of tube furnace.

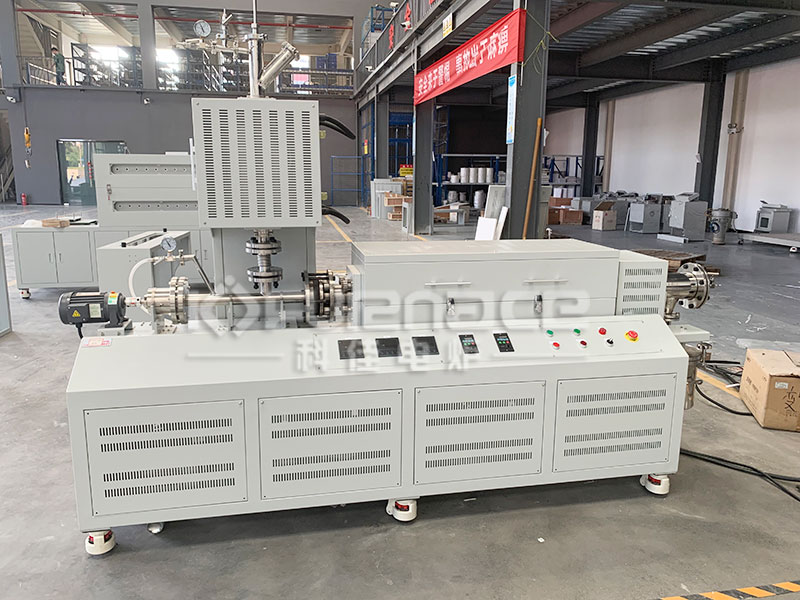

Actual photo of a three temperature zone rotary tube furnace with preheating

Equipment process:

Samples get preheated inside the crucible furnace then baffle get opened manually, sample get discharged with the screw feeder to the main rotation tube furnace and get forward continuously along with main tube rotation until to the discharged hopper, user adjust the tube rotation speed to control the resistance time. Only one 10L discharged hopper works. There are necessary thermal insulation to reduce the heat loss from the preheating furnace until to the main furnace.
The main rotation tube furnace works independently, the inclination angel is adjustable from 0°to 10°, feeding hopper and discharged hopper of 10L work together.

Main product advantages:

1.The tube is rotary & multiple heating zone design for sample uniform heating, user can also set temperature gradient according to actual need.
2.Independent temperature controller. 30 steps of programmable temperature.
3.Adjustable high precision 10L screw feeder is equipped, so the main rotary tube furnace can work independently without the preheating furnace.
4.Variable frequency motor to control tube rotation speed and screw feeder.
5.Adjust tilt angle with digital angle gauge.
6. Combined aural and visual alarm for accident of over temperature & thermocouple broken, and the power supply of the heating part will cut off automatically.
7.The whole system is sealing design with inlet & outlet valves, user can collect the gas. Ferrofluid seal for the manual baffle and screw feeder, graphite dynamic seal for two ends of the main furnace.

The main technical parameters:

Product name	Main rotary tube furnace	Preheating crucible furnace
Model	KJ-R100*900-1000	KJ-C200*300-800
Display	LED	LED
Max Continuous Working Temp.	1000℃	800℃
Tube material	310S stainless steel	310S crucible
Tube Diameter	OD100mm	OD200*H300mm
Total tube length	1400mm(for reference only)
Hot zone length	900mm
Hot zone num.	3
Single hot zone length	300mm
Angle of inclination	0~10°adjustable
Rotate speed	0~10rpm adjustable
Volume of hoppers	10L
Hoppers material	Stainless steel
Heating Rate	0~20℃/min
Thermal Control Accuracy	+/- 1℃(for high temperature state)
Heating Element	Resistance wire with Mo
Thermal Couple	K type
Working Voltage	220V 50/60HZ
Temperature Control	PID automatic control via SCR power control
Warranty	One year warranty(not include heating element and other wear parts)

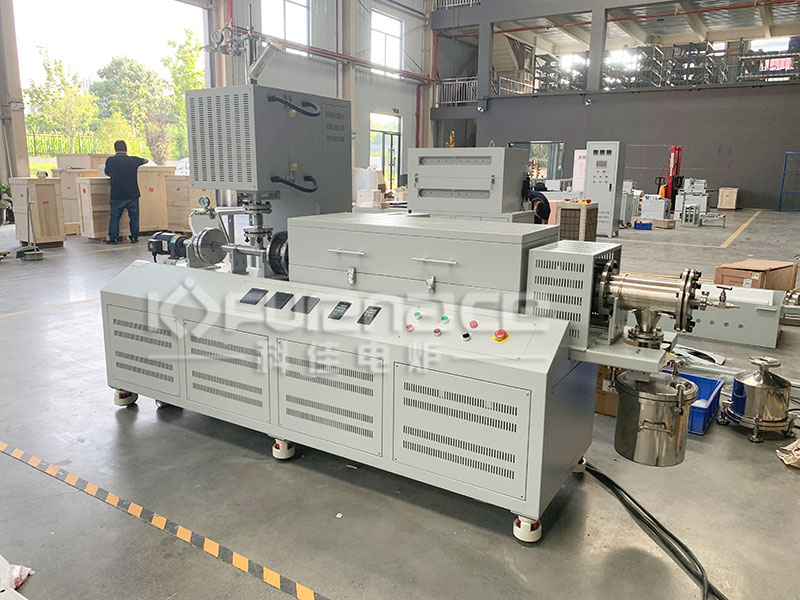

Actual photo of a three temperature zone rotary tube furnace with preheating

Product Display

Three temperature zone rotary tube furnace with preheating
