KJ-TX1100-S60CK1W biomass pyrolysis furnace

Model：KJ-TX1100-S60CK1W

Description：

The KJ-TX1100-S60CK1W biomass pyrolysis furnace is mainly used for laboratory biomass pyrolysis experiments. The entire equipment includes a pyrolysis furnace, tar gas condensation collection tank, and synthesis gas collection tank. There is a gas out

Product Introduction:

The KJ-TX1100-S60CK1W biomass pyrolysis furnace is mainly used for laboratory biomass pyrolysis experiments. The entire equipment includes a pyrolysis furnace, tar gas condensation collection tank, and synthesis gas collection tank. There is a gas outlet in the gas collection tank for easy connection to the gas analyzer for gas composition analysis experiments of synthetic gas. It belongs to a type of tube furnace.

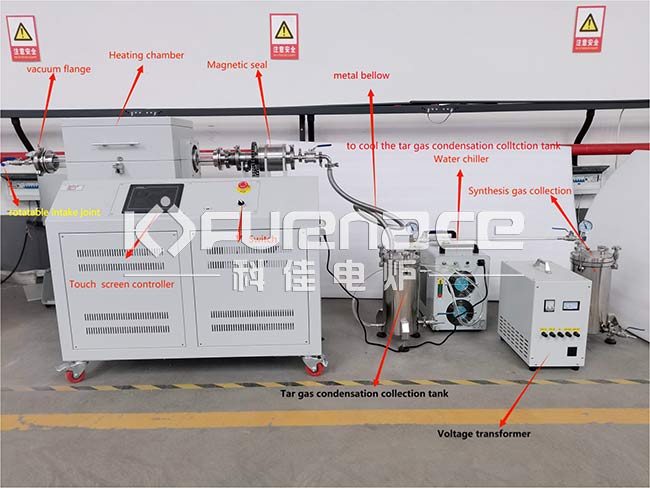

Illustration of KJ-TX100-S60CK1W Biomass Pyrolysis Furnace

The main technical parameters:

Biomass cracking furnace
Model	KJ-TX1100-S60CK1W
Control system	LCD touch screen
Working temperature	≤1100℃
Heating rate	0-20 ℃/min, recommended ≤ 10 ℃/min
Heating area size	large belly quartz tube Middle outer diameter 100mm; Outer diameter of both ends 60mm
Furnace tube material	High purity quartz tube
Heating element	containing molybdenum resistance wire
Furnace tube speed	0-10 RPM
Furnace tube inclination angle	0~30°
Thermocouple	K-type
Temperature control	intelligent PID program automatic temperature control
Temperature control	intelligent PID program for automatic temperature control Heating curve -16 temperature curves can be set, each temperature curve can be automatically set, and 30 steps of programming can be achieved.
Furnace material	alumina fiber
Rotable intake connector	convenient for gas admission
Connect the metal corrugated pipe of the pyrolysis furnace to the condensate tank:	wrap it with a heating tape to prevent the synthesis gas from cooling before entering the condensate tank.
Tar gas collection	Tar gas condensation collection tank; Equipped with a chiller unit for cooling gas
Syngas collection tank	Collect syngas for sampling and analysis
Maximum power	4KW
Warranty	One year warranty period (consumables such as quartz tubes are not covered by the warranty)

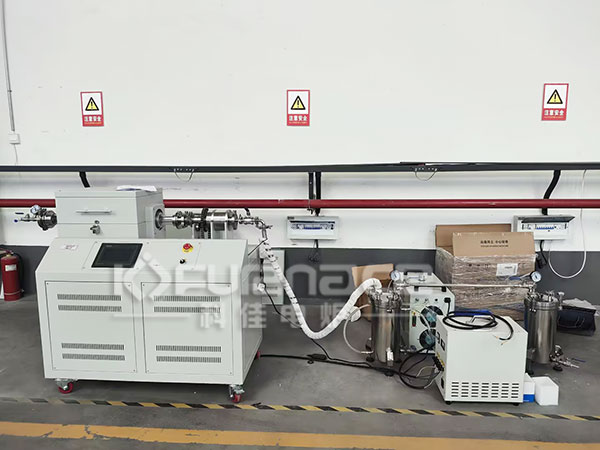

Actual photo of KJ-TX100-S60CK1W biomass pyrolysis furnace

Product Display

KJ-TX1100-S60CK1W biomass pyrolysis furnace
