Teflon hopper three temperature zone rotary tube furnace

The PTFE hopper three temperature zone rotary tube furnace is separately controlled by three independent temperature control systems. By adjusting the temperature of each temperature zone, a longer constant temperature zone can be formed in the heating zone. Each temperature control system adopts PID regulation, which can set 30 temperature rise and fall programs. The temperature control accuracy can reach+/-1 ℃, and the highest temperature in the furnace can reach 1300 ℃. The inlet and outlet hoppers of this rotary furnace are made of PTFE material, which has strong stability and will not react with the material. The feeding adopts a spiral feeder, which can rotate with the motor and move the sample forward, so it can continuously process the sample. At the same time, the furnace tube speed can be adjusted, and users can adjust the residence time of the sample in the heating zone.Click to consult online customer service for more information!

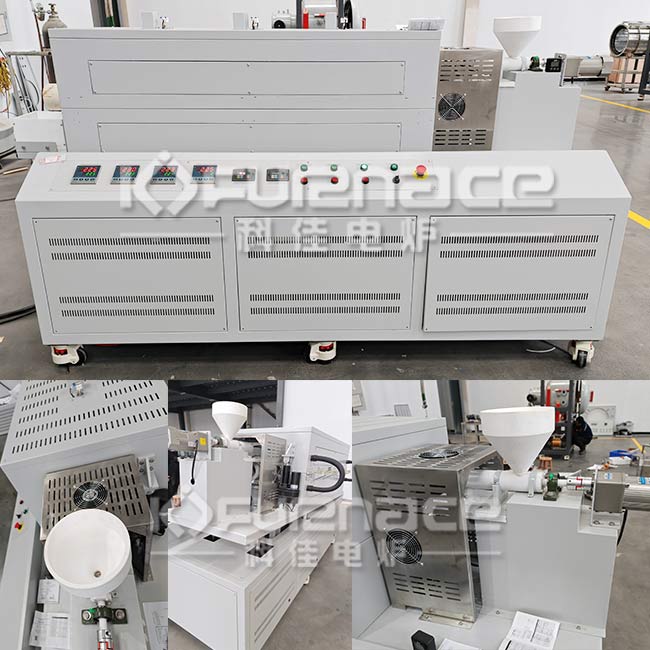

Actual photo of PTFE hopper three temperature zone rotary tube furnace

1. Three temperature zone independent control heating: Adopting three temperature zone independent control heating, each zone has a multi-stage program temperature control system, phase shift triggering, and thyristor control.
2. Continuous feeding and discharging: The feeding adopts a spiral feeder, which can rotate with the operation of the motor and move the sample forward, so it can continuously process the sample.
3. Rotating furnace tube: The furnace body can be tilted, and the furnace tube can be rotated forward or backward with adjustable speed, allowing the material to be dynamically heated, resulting in more uniform heating and sufficient contact with the required gas for reaction.
4. Over temperature protection and alarm: It has over temperature protection and alarm, as well as overheat and thermocouple fracture protection functions, allowing operation without human supervision.
5. Teflon material hopper: Both the feeding hopper and the discharging hopper are made of Teflon, which has strong stability and will not react with the sample.
6. Customization on demand: More specifications of furnace types can be customized according to individual needs.

Model		KJ-TX1300-M120LK3
Temperature controller(UL)		Display				LED
		Temperature control*3+over temperature protection*1
Max. Working Temperature		1300℃
Heating Rate		Suggest 0~10℃/min
Tube		Material	Mullite
		Diameter	OD120mm
			ID:100mm
		Length	1850mm

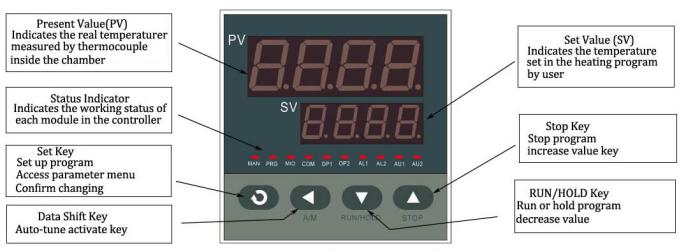

Temperature control		● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● Over temperature protection and alarm allows for operation without attendant.
Heated Zone Length		1200mm(400+400+400mm)
Uniform temperature zone		800mm
Number of Heated Zones		3
Rotary Speed		Max.			10RPM
		Min.			5RPM
Max Angle of Inclination		6°
Heating Element		SiC rods
Temperature measurement	Thermal Couple	S type*3 (one for each of the three temperature zones)
	Extra Thermal couple (For over temperature measurement)	S type*1 (located in the middle of the three temperature zones )
Feed Hopper		Capacity		5L
		Material		Teflon
Discharge Hopper		Capacity		5L
		Material		Teflon
Feeding mode		Spiral feeding
Chamber Material		High purity ceramic fiber
Working Voltage		575V 60Hz 3phase (Customer need to prepare transformer with UL)
Max. Power		About 28kw

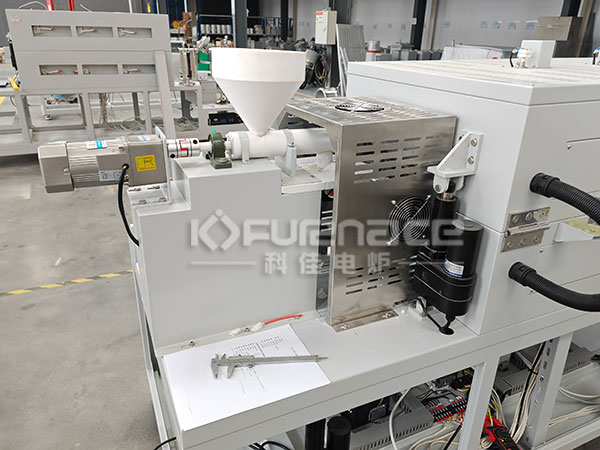

Actual photo of PTFE hopper three temperature zone rotary tube furnace

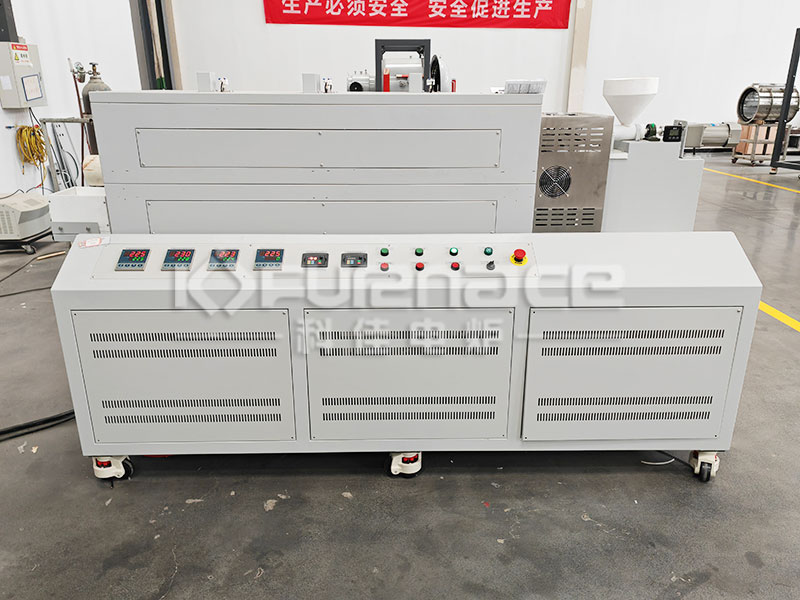

Actual photo of PTFE hopper three temperature zone rotary tube furnace

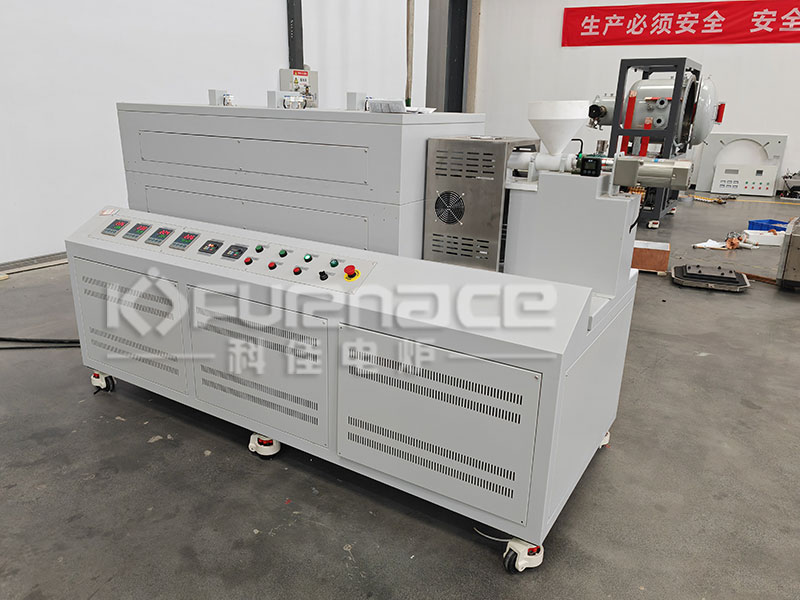

Actual photo of PTFE hopper three temperature zone rotary tube furnace
