Continuous calcination furnace for High Purity Alumina (HPA)

Model：

Description：

Continuous calcination furnace for High Purity Alumina (HPA) is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as.

Introduction:
Continuous calcination furnace for High Purity Alumina (HPA) is a high temperature reactor with special rotary and tilt function. It is specially designed for sintering of inorganic compound, such as, mineral particles and battery material and with better uniformity. Multi heating zone, condenser and tail gas collect equipment can be optional part according to different experiment.It belongs to a type of 1400 ℃ Tube Furnaces, capable of continuous feeding and discharging, and can be used for sintering aluminum oxide powder.

Technical Parameter:

Model	KJ-T1400
Display	LCD Touch Screen
Max. Temperature	1400℃ Max for short time
Continuous working Temperature	≤1350℃
Heating Rate	Suggestion 0~5℃/min (If diameter is big, pls control the rate as slow as possible)
Temperature Zone	500 mm (1 hot zone)
Temperature Control Accuracy	±1℃
Tube Size	Ф130mm x 1200mm ODxL
Tube Material	Alumina tube
Tube sealing	One side of tube is with feeder The other side is with outlet
Heating Element	Sic heating elements
Tube Rotating Speed	0-5 RPM
Furnace Tilt Angle	0~5℃
Thermocouple	S Type
Max. Power	15 KW approx. (accurate power depends on final design)
Working Voltage	AC 415V Three phases, 50Hz (or according to your requirement)
Temperature Control	PID automatic control via SCR power control

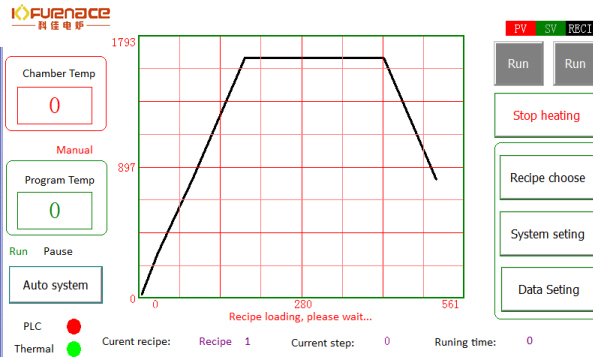

Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Warranty	One year limited warranty (Consumable parts such as heating elements and alumina tube are covered by the warranty)

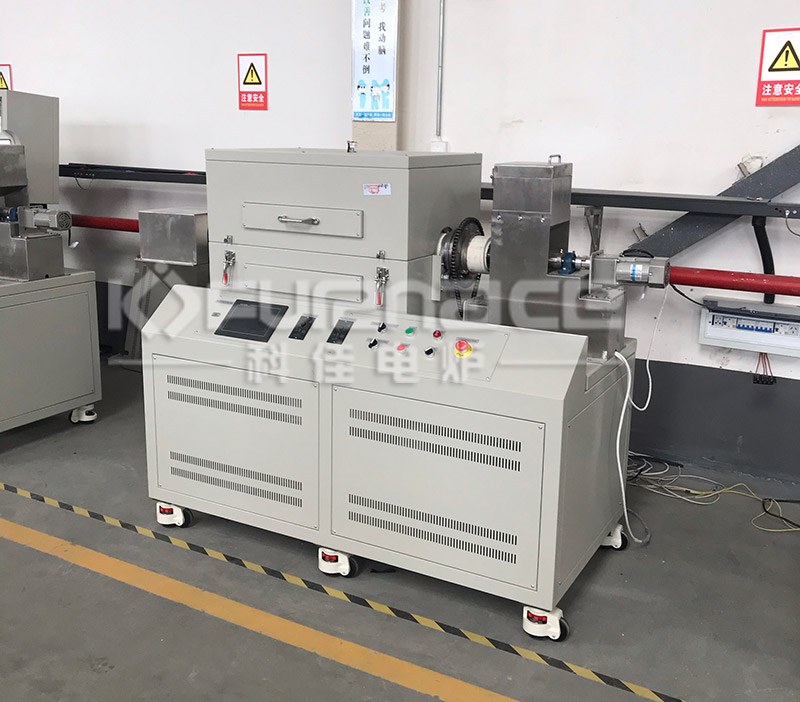

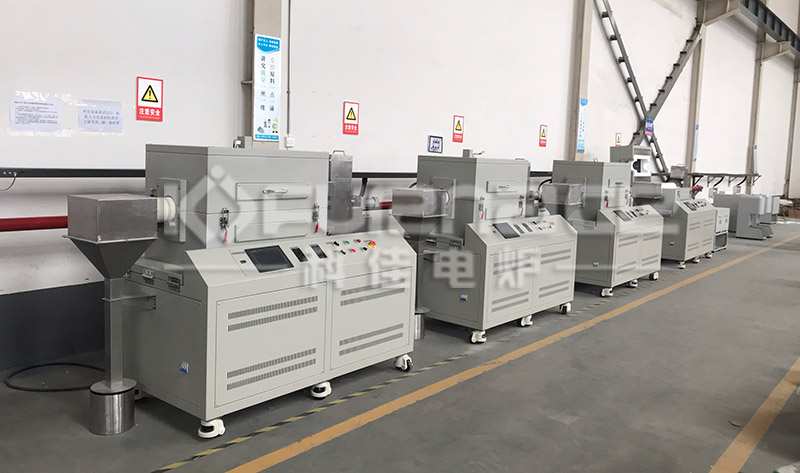

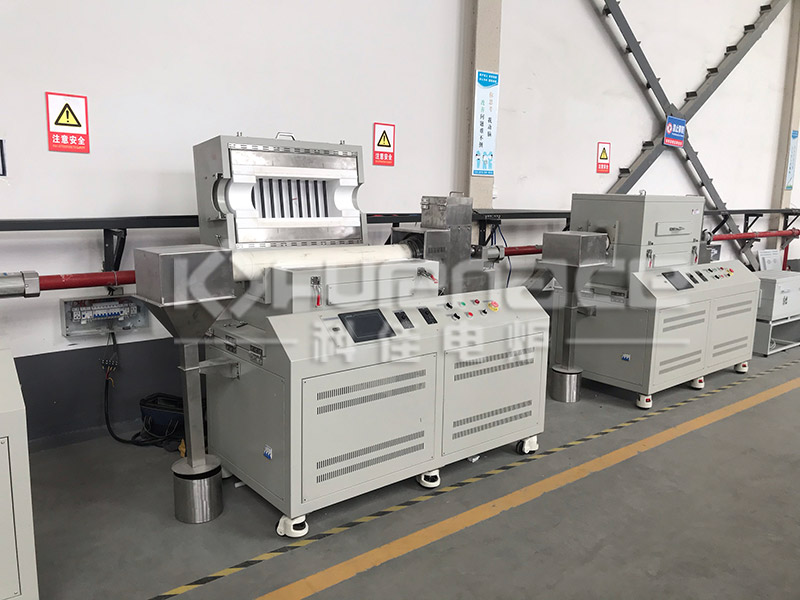

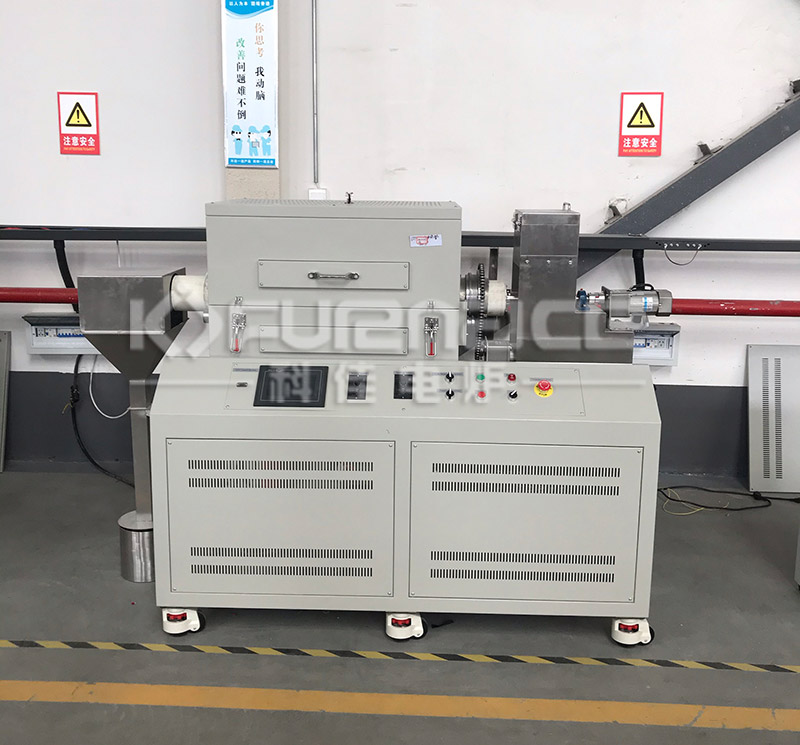

Product Display

Continuous calcination furnace for High Purity Alumina (HPA)
