1200 ℃ high-temperature rotary tube furnace

Product Introduction:

The 1200 ℃ high-temperature rotary tube furnace is a customized rotary tube furnace based on user needs, equipped with a dynamic and static sealing device on the right side and a condensation collection tank. The furnace adopts a lightweight ceramic fiber furnace, a double-layer shell structure, and an intelligent temperature control system, with high temperature control accuracy; Equipped with an air cooling system between the double layer furnace shells, effectively reducing the surface temperature of the furnace shell; Combining our standard vacuum and gas mixing system, the furnace can be vacuumed and the atmosphere can be ventilated. The furnace body can be tilted, and the furnace tube adopts equal diameter high-purity quartz tube. The furnace tube can rotate at 360 ℃, allowing the material to fully rotate during the rotation process, making the material more evenly heated and achieving better experimental results. High temperature rotary furnaces are used in universities, research institutes, and industrial and mining enterprises for the growth of graphene, high-temperature atmosphere sintering, atmosphere reduction, CVD experiments, etc. Click to view more tube furnaces! Or click to consult the online business manager to learn more about product related content!

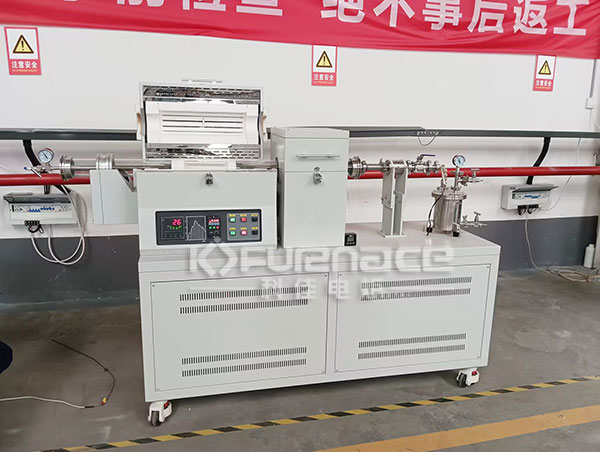

Actual photo of 1200 ℃ high-temperature rotary tube furnace

Main product advantages:

The double-layer shell has an open structure, making it easy to remove and place the furnace tubes, and is equipped with an air cooling system.
High temperature warning and disconnection prompt function.
Stainless steel metal flange with valves and related interfaces, easy to disassemble and assemble, capable of vacuuming and filling with protective gas to micro positive pressure.
The lower box of the equipment is a movable box that can also serve as a material rack, making the overall movement of the furnace convenient.

The main technical parameters:

Product name	High temperature rotary furnace
Model	KJ-TX1200-S80LK1W
Shell structure	The opening structure on the double-layer shell makes it easy to take and place the furnace tube. Equipped with an air cooling system
Furnace tube size approx.	outer diameter φ80mmX1200mm
Furnace tube material	Equal diameter high purity quartz tube
Heating zone length	440mm ，The length of the constant temperature zone is approx. 200mm
Working temperature	The temperature is not greater than 1100℃ under continuous operation; maximum temperature: 1200℃
Temperature control method	Adopt PID control and self-tuning adjustment, intelligent 30-segment programmable control
Ultra high temperature alarm	With ultra-high temperature alarm
Broken couple tips	There is a reminder of couple breakup
Furnace chamber size	High purity alumina refractory fiber
Heating rate	0--10℃/min Adjustable (recommended ≤5℃/min for temperatures above 1000 degrees)
Heating element	High quality resistance wire
Temperature measuring element	K type thermocouple
Working power supply	220V 50HZ 3KW
Tilt angle	Adjustable up to 10 degrees, the angle can be displayed through a digital inclinometer
Furnace tube speed	Maximum 10 rpm (speed adjustable, rotation direction adjustable)
sealing flange	Stainless steel metal flange, with valve and related interfaces, easy to disassemble and assemble, can be evacuated and filled with protective gas to slightly positive pressure
Moving cabinet	The lower box of the equipment is a movable box that can also be used as a material rack, making the furnace as a whole easy to move.
special requirements	A dynamic and static sealing device and a condensation collection tank are installed on the right side. Install heating tape between flange and collection tank.
Warranty	15 months from the date of shipment or 12 months from the date of acceptance (whichever comes first), consumable parts and man-made damage are not covered by the warranty.
Precautions	1. The air pressure inside the furnace tube is less than 0.02MPa 2. When introducing gas into the furnace tube, a pressure reducing valve should be installed on the gas cylinder, which will be more accurate and safer to use. 3. When the equipment is running, it is not recommended to close the air outlet valve and air inlet valve at the flange end of the furnace tube. If you need to close the air valve to heat the sample, you need to always pay attention to the pressure gauge indication. If the air pressure indication is greater than 0.02MPa, you must open the air outlet valve immediately to prevent accidents (such as furnace tube rupture, flange flying out, etc.) 4. When the furnace is at high temperature, the furnace tube cannot be in a vacuum state. The air pressure in the furnace tube must be equal to the atmospheric pressure and maintained at normal pressure. 5. Customers are not recommended to use flammable, combustible, corrosive, or toxic materials or gases. If the process must be used, please install relevant safety devices yourself. The company is not responsible for the problems caused.

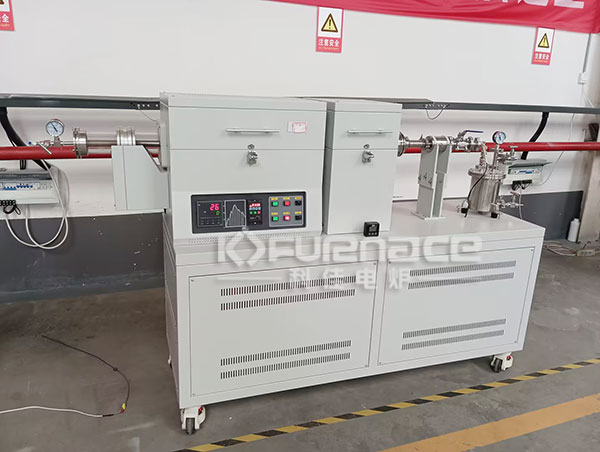

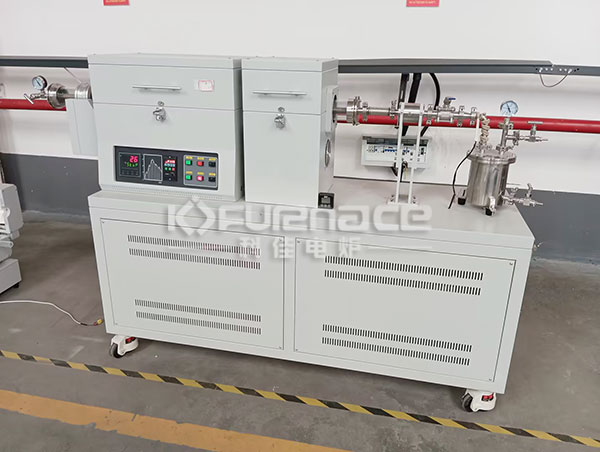

Actual photo of 1200 ℃ high-temperature rotary tube furnace
