Large diameter three temperature zone tube furnace with sliding flange

Product Introduction:

The three temperature zone large diameter tube furnace is composed of a furnace shell, furnace lining, heating elements, and temperature control cabinet device. The furnace shell is divided into upper and lower parts, and the upper part is electrically controlled. It can be flipped and opened when loading and unloading the furnace tubes. The furnace lining adopts alumina fiber lining. The heating element is installed on the furnace lining using high-temperature silicon carbon rods arranged vertically. There are three heating temperature zones that can be individually controlled, and the temperature curve can be set to automatically control the temperature. The furnace door is equipped with electric opening and closing, with sliding flanges for easy flange disassembly. Can be used for high-temperature sintering, brazing, etc. of materials. Belongs to tube furnaces.

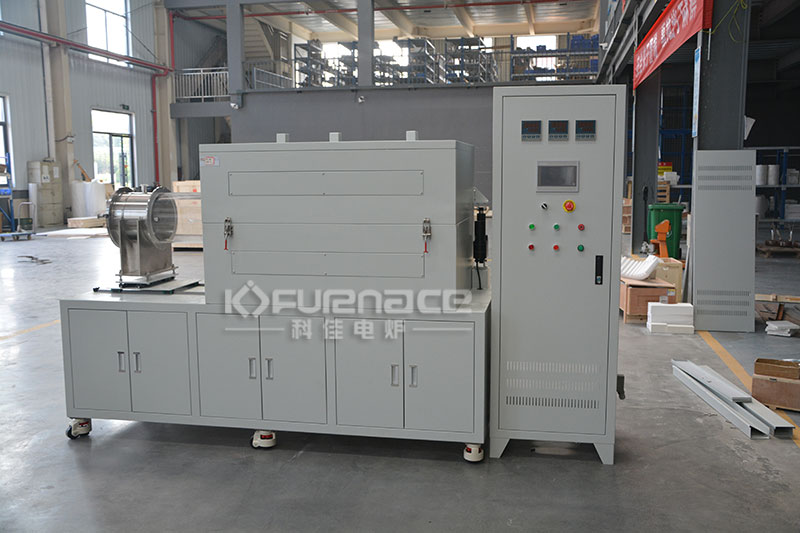

Actual photo of a large diameter three temperature zone tube furnace with sliding flange

The main technical parameters:

Product name	Large diameter tube furnace
Product model	KJ-TG1000-S300LK3
Furnace tube size	approximately Φ three hundred × 1550 mm (based on actual size)
Furnace tube material	quartz tube
Furnace tube structure	customized single end sealed quartz tube with quartz inlet pipe (provided by the user)
Heating zone	three temperature zones, each with a length of 300mm and a total length of 900mm
Working temperature	≤1000℃
Heating element	high-temperature silicon carbon rod
Temperature control accuracy	±1℃
Heating rate	1-15 ℃/min, freely adjustable according to the process
Furnace structure	1. Adopting a double-layer shell structure and equipped with a cooling fan installed inside the furnace to ensure that the surface temperature of the equipment is less than 60 ℃ 2. The furnace is composed of furnace materials, insulation materials, and heating elements 3. The temperature control system consists of temperature control instruments, control components, and thermocouples 4. Integrated structure of furnace body and temperature control, with the furnace fixed on the lower box body
Temperature testing element	K-type thermocouple with three temperature control thermocouples for more accurate temperature control
Temperature control system	The temperature control system adopts touch screen operation and artificial intelligence adjustment technology, with PID adjustment and self tuning functions, and can program 30 sections of temperature rise and fall; 1. PID method is used to adjust and control the temperature, with 30 segments of temperature rise and fall programs and three independent temperature control systems 2. Temperature control accuracy ± 1 º C 3. Equipped with over temperature protection and couple breaking protection, the heating circuit of the electric furnace is automatically cut off when over temperature or couple breaking occurs, allowing for unmanned monitoring 4. The instrument has the function of temperature self-tuning 5. Optional temperature control software can be purchased, and the heating temperature of the equipment can be set using a computer 6. Touch screen operation, data can be stored and output, with 485 interface
Sealing flange	using sleeve flange, KF25 drain/outlet, KF25 vacuum interface, all designed on the flange
Door opening method	electric door opening
Intake control	inert protective gases such as nitrogen and argon can be passed through. The intake range is measured by a float flowmeter, and the flow range can be adjusted according to user requirements
Working voltage	AC 380V 50Hz
Heating power	36KW
Provide relevant accessories	crucible hook, high-temperature gloves, thermocouple, instruction manual, warranty card, 4 spare rods, etc
After sales service	12 month warranty, lifetime warranty (free accessories such as heating elements are not included in the warranty scope)

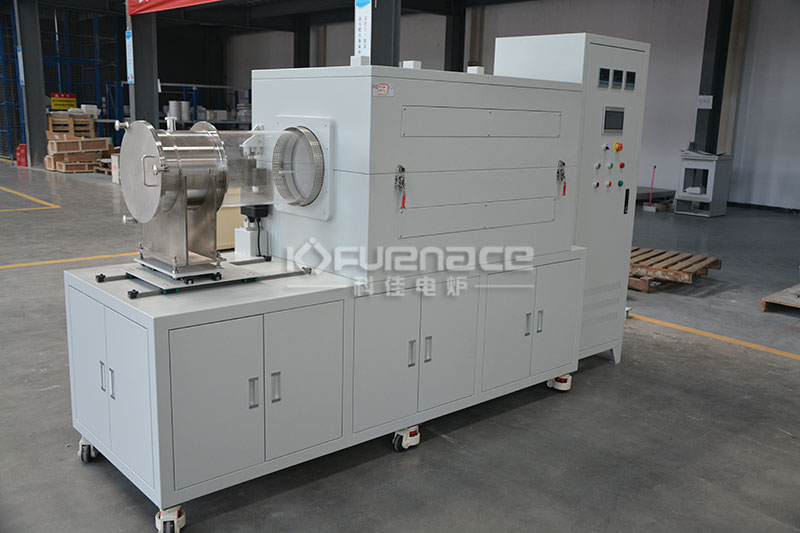

Actual photo of a large diameter three temperature zone tube furnace with sliding flange

Product Display

Large diameter three temperature zone tube furnace with sliding flange
