Product Description:

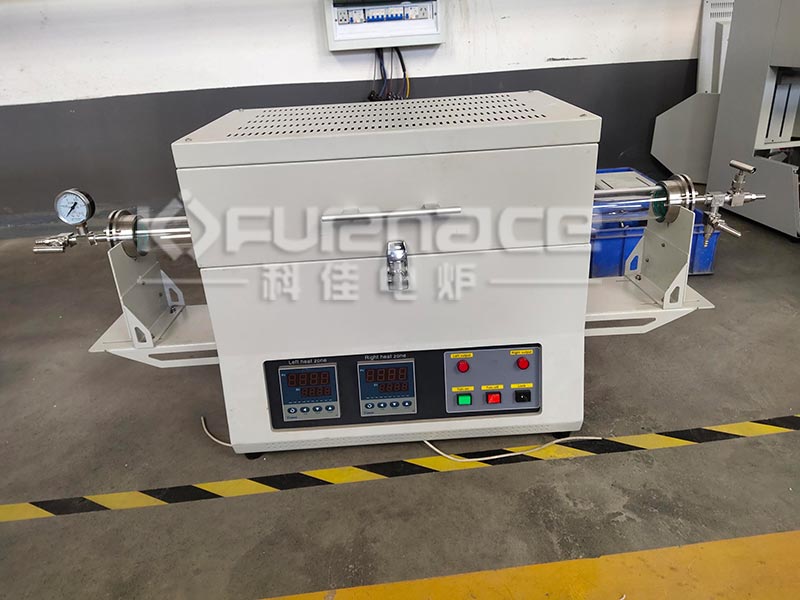

The Kejia 1200 ℃ two temperature zone tube furnace has the characteristics of safety and reliability, simple operation, high temperature control accuracy, good insulation effect, high furnace temperature uniformity, and the ability to vacuum through the atmosphere. It is widely used in universities, research institutes, and industrial and mining enterprises for high-temperature sintered metal material treatment experiments, quality testing, and small batch production. The maximum heating temperature is 1200 degrees, and it belongs to a type of 1200℃tube furnace.
Main functions and features:
(1) Carbon steel shell and ceramic fiber lined chamber, double layer structure, with cooling fan.
(2) Heat-resistant high-quality rubber ring sealing ensures good sealing performance.
(4) 30 step programmable temperature, PID automatic temperature controller.
(5) Independent temperature controller for each hot zone.
(6) Overtemperature, thermocouple breakage accidents, sound and light alarm, heating part power automatically cut off.
Technical Parameter:
The Kejia 1200 ℃ two temperature zone tube furnace has the characteristics of safety and reliability, simple operation, high temperature control accuracy, good insulation effect, high furnace temperature uniformity, and the ability to vacuum through the atmosphere. It is widely used in universities, research institutes, and industrial and mining enterprises for high-temperature sintered metal material treatment experiments, quality testing, and small batch production. The maximum heating temperature is 1200 degrees, and it belongs to a type of 1200℃tube furnace.
(1) Carbon steel shell and ceramic fiber lined chamber, double layer structure, with cooling fan.
(2) Heat-resistant high-quality rubber ring sealing ensures good sealing performance.
(4) 30 step programmable temperature, PID automatic temperature controller.
(5) Independent temperature controller for each hot zone.
(6) Overtemperature, thermocouple breakage accidents, sound and light alarm, heating part power automatically cut off.
Technical Parameter:
| Tube outer diameter | 60mm | Unit heat zone length | 220mm |
| Heat zone num | 2 | Total heating zone length | 440mm |
| Fiber liner | High purity alumina fiber | Heating rate | 0~20℃/min |
| Thermal couple | K Type | Controller | LED |
| Heating element | Resistance wire with Mo | Temperature Accuracy | ±1℃ |
| Limit temperature | 1200℃ | Max working temperature | 1100℃ |
| Power source | 220V 50HZ | Max heating power | 3kw |
| Package size | 1100*110*160mm 1220*540*750mm | Package weight | 79Kg |
