Product description:

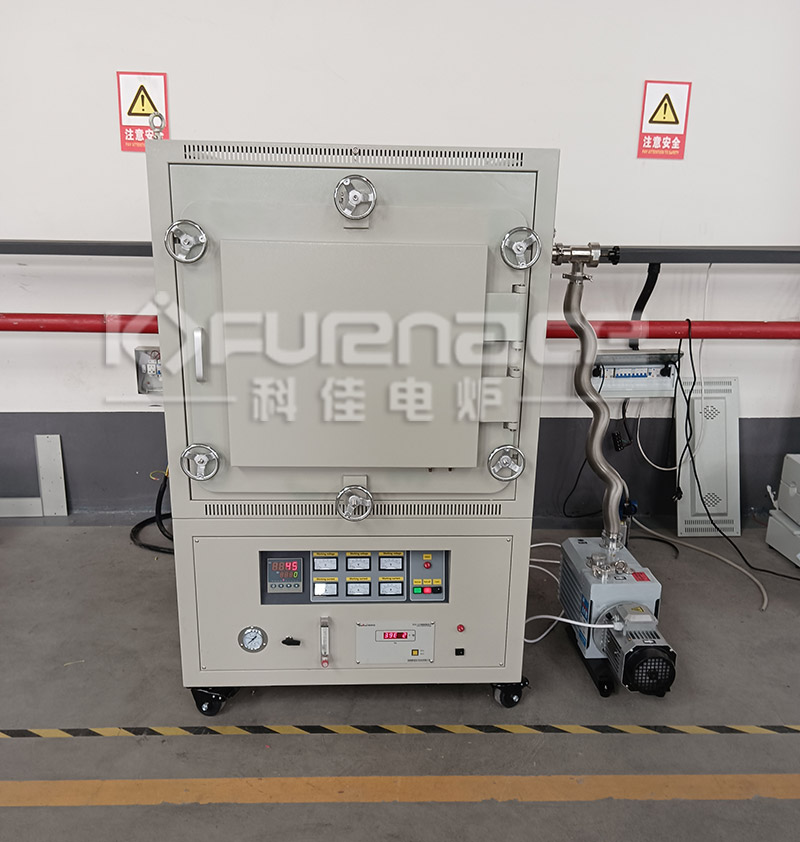

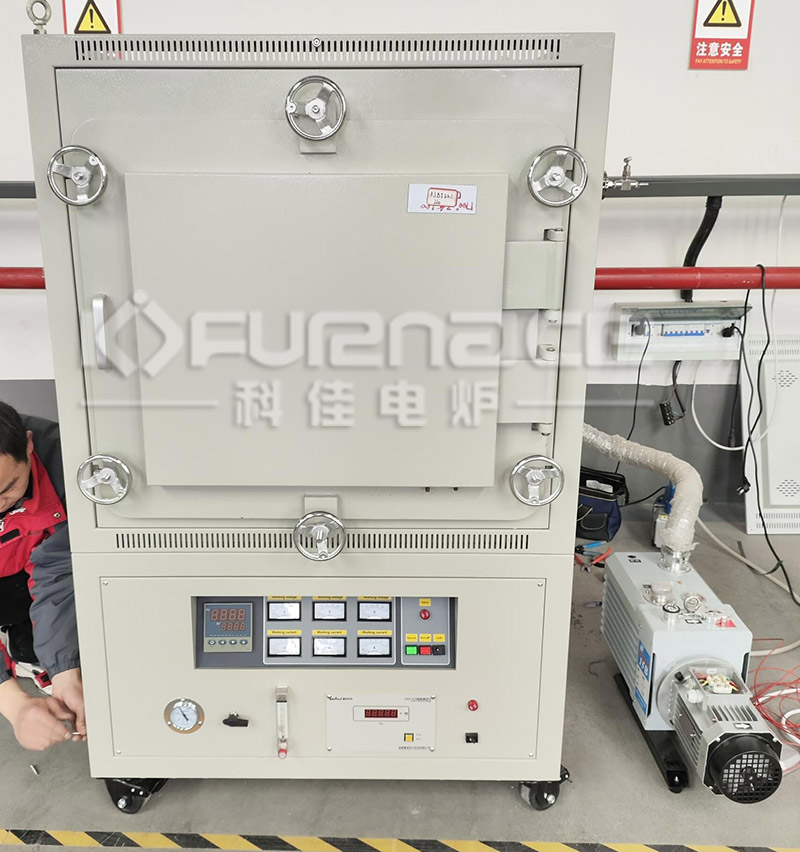

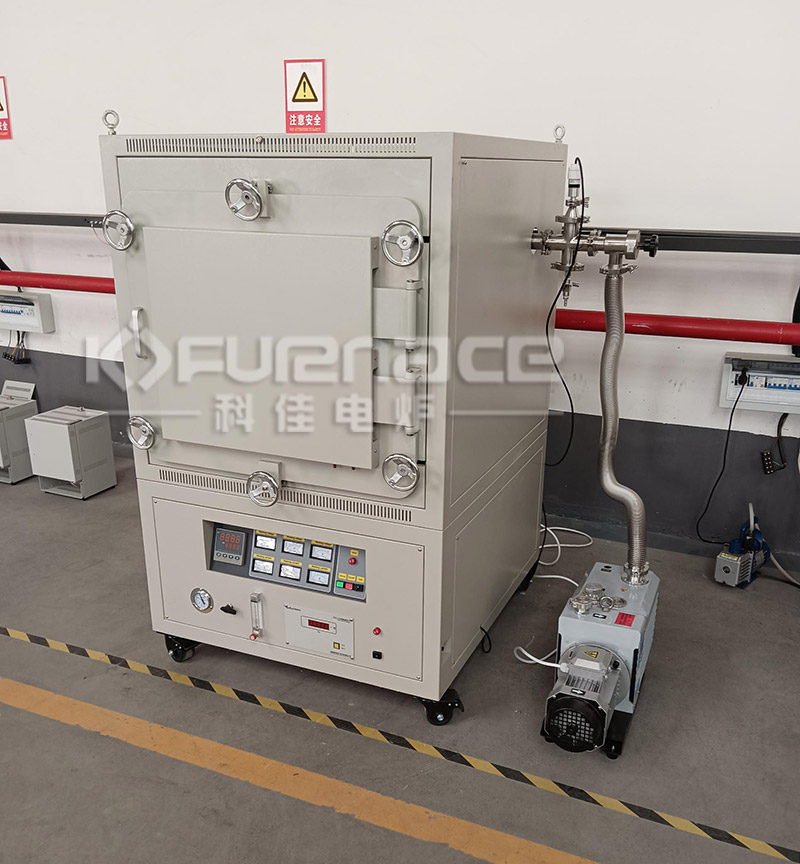

The high-temperature box-type atmosphere furnace uses high-quality silicon-molybdenum rods as heating elements and an internal heating single-chamber structure. The aluminum oxide polycrystalline fiber material is used, which has good thermal insulation and energy saving effects. Double-layer air-cooled structure.Belongs to a type of atmosphere furnace.
Applications:
The high-temperature box-type atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises for pre-sintering, sintering, brazing and other processes of electronic ceramic products.
Features:
1. The heating elements are evenly arranged on multiple sides to ensure that the work is heated evenly.
2. It is airtight, equipped with a vacuum pump to pre-evacuate and replace the gas.
3. There are air inlet and outlet ports, which can be used for air intake and exhaust according to process requirements.
4. Equipped with an audible and visual alarm device for over-temperature disconnection.
5. Optional digital display vacuum gauge can display the vacuum degree in the furnace in real time
Product parameters:
The high-temperature box-type atmosphere furnace uses high-quality silicon-molybdenum rods as heating elements and an internal heating single-chamber structure. The aluminum oxide polycrystalline fiber material is used, which has good thermal insulation and energy saving effects. Double-layer air-cooled structure.Belongs to a type of atmosphere furnace.
Applications:
The high-temperature box-type atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials and powder materials under vacuum or atmosphere conditions. It is also used in metallurgy, machinery, light industry, commodity inspection, colleges and universities and scientific research departments, industrial and mining enterprises for pre-sintering, sintering, brazing and other processes of electronic ceramic products.
Features:
1. The heating elements are evenly arranged on multiple sides to ensure that the work is heated evenly.
2. It is airtight, equipped with a vacuum pump to pre-evacuate and replace the gas.
3. There are air inlet and outlet ports, which can be used for air intake and exhaust according to process requirements.
4. Equipped with an audible and visual alarm device for over-temperature disconnection.
5. Optional digital display vacuum gauge can display the vacuum degree in the furnace in real time
Product parameters:
| Product name | High-temperature box-type atmosphere furnace | ||
| Model | KJ-A1700-80LZ | ||
| Material area size | 400*400*500mm | ||
| heating element | High quality silicon molybdenum rod | ||
| Temperature control method | Intelligent multi-stage program temperature control | ||
| Working temperature | ≤1600℃ | ||
| extreme temperature | 1700℃ | ||
| Heating rate | ≤10℃/min | ||
| thermocouple | B type temperature measuring thermocouple | ||
| Ultimate vacuum | -0.1MPA | ||
| Vacuum pump | Various pumping speeds are optional | ||
| power supply | 3-phase 380V power about 27KW | ||
| Other sizes available | |||
| Material area size（mm） | volume (L) | Material area size（mm） | volume (L) |
| 200*200*200 | 8 | 300*300*300 | 27 |
| 200*200*300 | 12 | 300*300*400 | 36 |
| 250*250*300 | 19 | 400*400*500 | 80 |
| More sizes can be customized | |||
